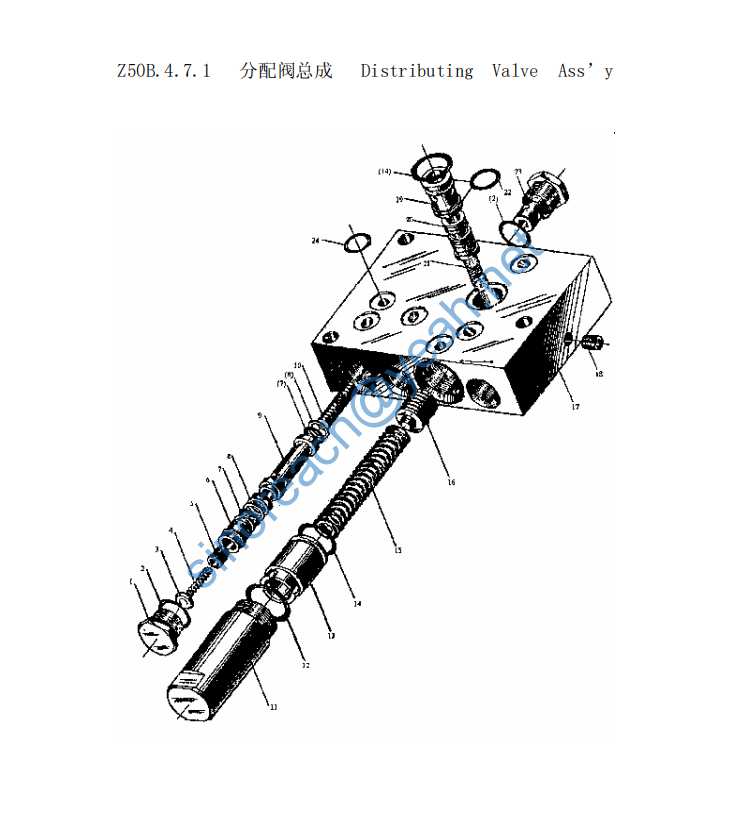

Z50B.4.7.1 分配阀总成 Distributing Valve Ass’y

1 Z30.4.12-12 “固定螺钉 Screw”
2 B-Q020710-00042 “O形密封圈 25×2.4 O-ring”
3 Z30.4.12-11 “弹簧座 Spring seat”
4 Z30.4.12-10 “弹簧 Spring”
5 Z50B.4.7.1-1 “单向阀 One-way valve”
Z50B.4.7.1-2 “单向阀 One-way valve”
6 Z30.4.12-9 “单向阀套 One-way Valve bushing”
7 B-Q020710-00024 “O形密封圈 16×2.4 O-ring”
8 B-Q020780-00001 “挡圈A16×12 Seal ring”
9 Z30.4.12-7 “蓄能阀套 Valve bush”
10 Z30.4.12-6 “阀芯 Valve core”
11 Z30.4.12-13 “蓄能阀阀套 Valve hood”
12 B-Q020710-00056 “O形密封圈 35×3.5 O-ring”
13 Z30.4.12-3 “液流阀阀套 Valve bush”
14 B-Q020710-00047 “O形密封圈 30×3.1 O-ring”
15 Z30.4.12-2 “弹簧 Spring”
16 Z30.4.12-4 “蓄能阀阀芯 Valve core”
17 Z30.4.12-1 “阀体 Valve case”
18 W-10-00008 “螺钉 Z1/8”×12 Screw”
19 Z30.4.12-14 “阀套 Valve sleeve”
20 Z30.4.12-15 “阀芯 Valve core”
21 Z30.4.12-16 “弹簧 Spring”
22 B-Q020710-00033 “O形密封圈 22×2.4 O-ring”
23 Z30.4.12-5 “固定螺钉 Screw”
24 B-Q020710-00029 “O形密封圈 20×2.4 O-ring”
