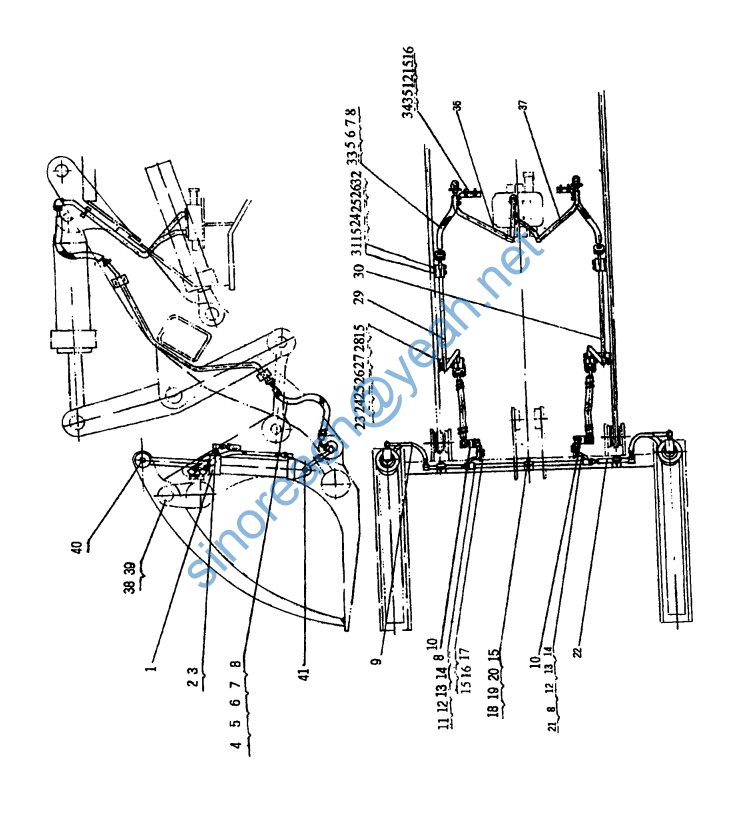

Z50E.34G  工作装置液压系统（配抓具） Hydraulic  System

1 Z50B.14A.4 “夹爪油缸 Jaw cylinder”
2 W-15-00027 “组合接头SY.4.21-22 Combined joint”
3 B-Q020510-00005 “专用O形圈 20.7×3.4 O-ring”
4 B-Q020540-00003 “软管总成 19-900 Hose ass’y”
5 B-G057830-00145 “螺栓 M8×30-10.9 ZnD Bolt”
6 B-Q020140-00001 “分离式法兰 Aφ32.6/35 Flange”
7 B-Q020710-00049 “O形密封圈 31×3.5 O-ring”
8 B-G000930-00017 “垫圈 8 Washer”
9 B-Q020290-00008 “软管总成 16-940 Hose ass’y”
10 W-15-00059 “旋转接头ZF-17 Joint”
11 Z50B.14A.3 “油管 Tube”
12 B-G057820-00163 “螺栓 M8×55-10.9 ZnD Bolt”
13 B-G057820-00163 “螺栓 M8×55-10.9 ZnD Bolt”
14 B-Q020710-00057 “O形密封圈 36×3.5 O-ring”
15 B-Q020490-00001 “垫圈 10 Washer”
16 B-Q020120-00003 “U形管夹 A28 U-clamp”
17 B-G061760-00001 “螺母 M10×1.25 Nut”
18 B-G057830-00041 “螺栓 M12×40 Bolt”
19 Z50B.14A-5 “垫块 Block”
20 Z50B.14A-6 “压板 Clamp”
21 Z50B.14A.2 “油管 Tube”
22 Z50B.14A.1 “油管 Tube”
23 Z50B.14A.9 “支架 Support”
24 Z50B.14A-1 “板 Plate”
25 Z50B.14A-2 “衬套 Bushing”
26 Z50B.14A-3 “橡胶压板 Rubber clamp”
27 B-G057830-00003 “螺栓 M10×20 Bolt”
28 B-G057820-00024 “螺栓 M10×75 Bolt”

29 Z50B.14A.5 “油管 Tube”
30 Z50B.14A.6 “油管 Tube”
31 Z50B.14A-7 “座 Seat”
32 B-G057820-00023 “螺栓 M10×70 Bolt”
33 B-Q020560-00001 “软管总成 19-1000 Hose ass’y”
34 B-G057830-00006 “螺栓 M10×25 Bolt”
