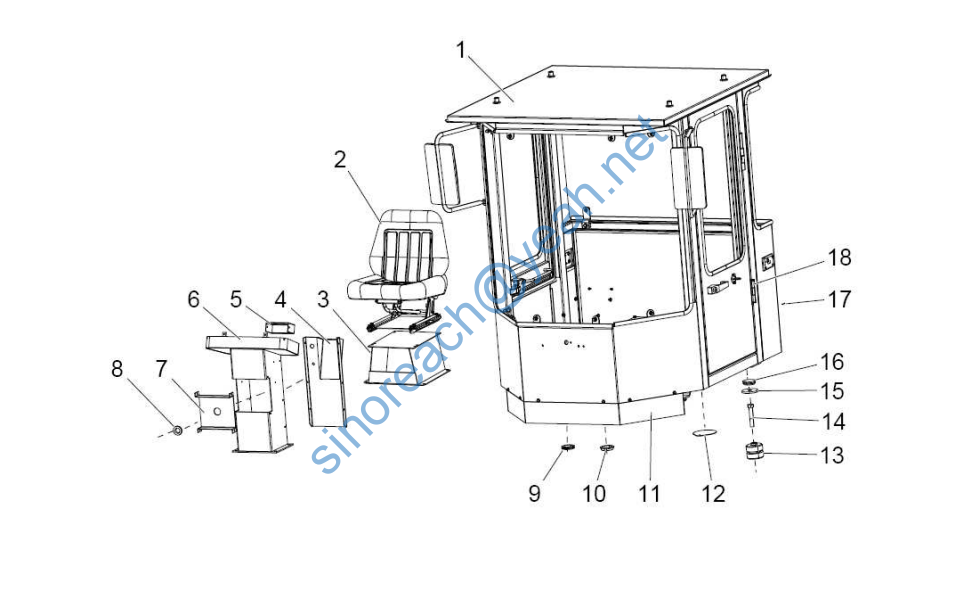

驾驶室总成 CAB ASSEMBLY

1 驾驶室（配件 精饰） Cab assembly NZ5B7230080020 1.0
1 侧门密封条 Side door sealing Z010201030 8.3
1 驾驶室(配件 装配) Cab assembly NZ5B7230080010
Z330440040
1.0
1 前玻璃贴花 Glass decal 1.0
1 吉祥物 Sem sign Z510440030 ZL50D.44-3 2.0
1 山工机械 Sem Z5A04400040 2.0
2 座椅（配头枕） Seat W100000030B SN6-0000 1.0
3 座椅支架 Seat bracket Z5B05308400 1.0
4 护罩 Shield Z3A00422600 1.0
5 上盖 Upper cap Z5B05312100 1.0
6 操纵台支架总成 Console bracket assembly Z3A00421600 1.0
7 挡板 Plate Z3A00423600 1.0
8 变速杆密封套 Seal sleeve Z3A00422300 2.0
9 护套 Cover Z320050080 ZL30F.5-14 1.0
10 转向管柱密封套 Steering column seal Z3A00422100 1.0
11 围裙组件 Skirt assembly Z5B05311700 1.0
12 加力器加油口盖 Filler cap Z510060050 ZL50D.6-6 1.0
13 Marc_30 减震器 Shock absorber Z3B01400400 4.0
14 螺栓 M20×110 Bolt B040810003 GB/T5782-2000 4.0
15 垫 Washer Z010202130 4.0
16 密封盖Ⅲ Seal cover Z3A00403300 4.0
17 开口销 2×24 Cotter pin B080210224 GB/T91-2000 4.0
18 铰链轴 Hinge shaft Z330041170 4.0
暖风管盖 Heating hose cover Z3A00429000
