Z50H.1A 发动机系统 Engine System

1 Z50H. 1A-1 1 水箱减振垫 Cushion 2 5071195-
2 B-G057830-00157 1 螺栓 M14×55ZnD Blot 6 5071195-
3 B-G00097B-00006 1 垫圈 14ZnD Washer 8 5071195-
4 B-G000930-00005 1 垫圈 14 Washer 8 5071195-
5 B-G061700-00010 1 螺母 M14ZnD Nut 6 5071195-
6 Z50H. 1A-22 1 水箱撑杆 Support 2 5071195-
7 B-G057830-00057 1 螺栓 M14×35ZnD Blot 2 5071195-
8 Z50H.1A.11 1 水箱机油散热器组件 Radiator ass’ y 1 5071195-
9 Z50H. 1A-3 1 柴油机出水管 Hose 1 5071195-
10 Z50H. 1A-10 1 柴油机进水接管 Hose 3 5071195-
11 B-J088700-00018 1 喉箍 d70 Clamp 8 5071195-
12 Z50H. 1A-21 1 夹布输油胶管 Φ10×1000 Hose 1 5071195-
13 B-J088700-00007 1 喉箍 d16 Clamp 4 5071195-
14 Z50H. 1A. 1 1 消音器支架 Support 1 5071195-
15 Z50H. 1A. 2 1 排气接管支架 Support 1 5071195-
16 Z50H. 1A-11 1 排气接管 Hose 1 5071195-
17 B-G000930-00001 1 垫圈 10 Washer 49 5071195-
18 B-G00097B-00002 1 垫圈 10ZnD Washer 41 5071195-
19 B-G057830-00006 1 螺栓 M10×25ZnD Blot 10 5071195-
20 Z50H. 1A-4 1 排气垫 Pad 1 5071195-
21 B-G057830-00015 1 螺栓 M10×40ZnD Blot 24 5071195-
22 B-G061700-00003 1 螺母 M10ZnD Nut 13 5071195-
23 W-02-00064 1 消声器(带排气尾管) Noise suppresser 1 5071195-
24 Z50H. 1A-5 1 空滤器卡箍 Clamp 1 5071195-
25 Z50H. 1A.4 1 空滤器接管 Hose 1 5071195-
26 B-G057830-00018 1 螺栓 M10×50ZnD Blot 5 5071195-

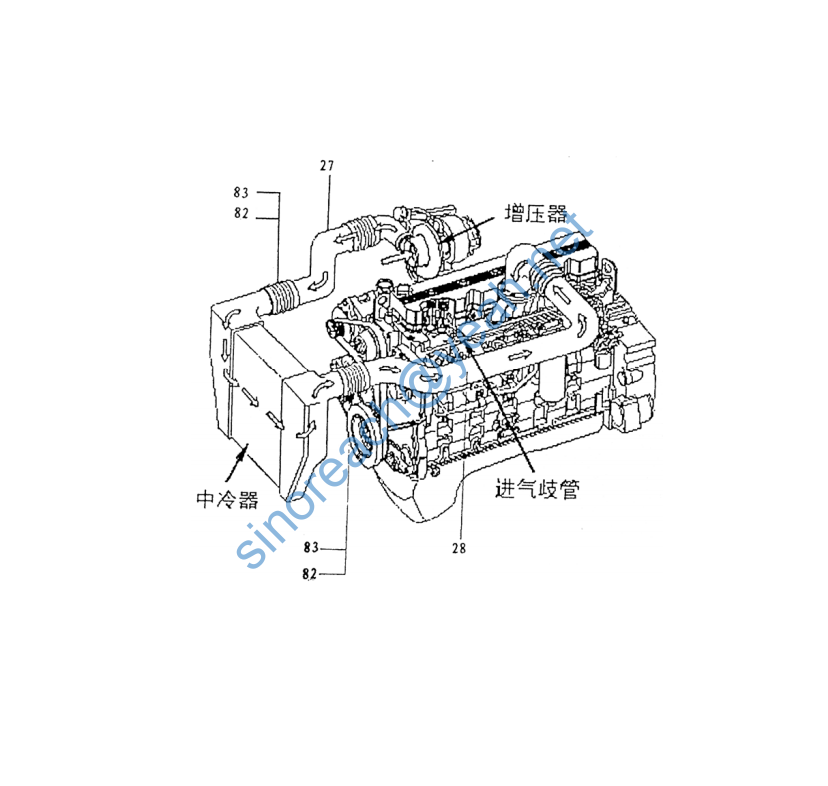

27 Z50H. 1A-9 1 中冷器进气管 Hose 1 5071195-
28 Z50H. 1A-14 1 中冷器出气管 Hose 1 5071195-
29 W-02-00044 1 空滤器总成 AH19227-SD Air cleaner ass’ y 1 5071195-
30 W-02-00125 1 柴油机 6CTAA8.3-C215 Engine 1 5071195-
31 Z50H. 1A. 5 1 空滤器支架 Support 1 5071195-
32 Z50H. 1A.6 1 支架 Support 1 5071195-
33 Z50B.1C.15 1 油门软轴 Flexible shaft 1 5071195-
34 B-G057830-00132 1 螺栓 M6×25ZnD Blot 3 5071195-
35 B-G061700-00034 1 螺母 M6ZnD Nut 5 5071195-
36 B-G00097B-00021 1 垫圈 6ZnD Washer 9 5071195-
37 B-G000930-00015 1 垫圈 6 Washer 7 5071195-
38 Z50H. 1A-6 1 油门手柄 Handle 1 5071195-
39 Z30. 1A. 1 1 球铰接头 Joint 2 5071195-
40 Z50H. 1A. 8 1 油门软轴支架 Support 1 5071195-
41 W-02-00068 1 油门踏板(行程75) Acceletor pedal 1 5071195-
42 B-G057830-00083 1 螺栓 M16×65-10.9ZnD Blot 2 5071195-
43 B-G00097B-00008 1 垫圈 16ZnD Washer 10 5071195-
44 B-G000930-00006 1 垫圈 16 Washer 10 5071195-
45 B-G061700-00014 1 螺母 M16ZnD Nut 2 5071195-
46 Z50H. 1A. 9 1 支架 Plate 1 5071195-
47 B-G057850-00036 1 螺栓 M22×1.5×140-10.9ZnD Blot 4 5071195-

48 B-G000930-00009 1 垫圈 22 Washer 4 5071195-
49 Z30.1-10 1 垫圈 Washer 8 5071195-
50 Z30.1.2 1 缓冲橡胶垫 Cushion 4 5071195-
51 B-G061710-00018 1 螺母 M22×1.5ZnD Nut 4 5071195-
52 Z50H. 1A-16 1 输油泵进油接头 Joint 1 5071195-
53 W-02-00038 1 进油软管 4RCG12350700 Hose 1 5071195-
54 B-J009990-00001 1 铰接螺栓 M14×1.5×32 Blot 2 5071195-
55 B-J010020-00003 1 垫圈 14 Washer 4 5071195-
56 W-02-00112 1 风扇 4735-42599-YS-762 Ventilator 1 5071195-
57 Z50H. 1A-15 1 进气胶管 Hose 1 5071195-
58 Z50H. 1A. 10 1 进气接管 Hose 1 5071195-
59 W-02-00130 1 预紧力弹簧卡箍 115 Clamp 2 5071195-
60 Z50H. 1A-24 1 法兰 Coupling 1 5071195-
61 Z50H. 1A-7 1 油底壳放油接头 Joint 1 5071195-
62 Z50H. 1A-8 1 夹布输油胶管 Hose 1 5071195-
63 B-J009990-00005 1 铰接螺栓 M18×1.5×38 Blot 1 5071195-
64 B-J010020-00005 1 垫圈 18 Washer 2 5071195-
65 B-J088700-00014 1 喉箍 d32 Clamp 2 5071195-
66 Z50H. 1A-20 1 柴油机进水管 Hose 1 5071195-
67 Z50H. 1A-19 1 柴油机进水接管 Hose 1 5071195-
68 Z50B. 1.11 1 接管 Hose 1 5071195-
69 Z50B. 1-12 1 螺塞 Plug 1 5071195-
70 B-G057830-00003 1 螺栓 M10×20ZnD Blot 2 5071195-
71 Z50H. 1A-13 1 柴油机附件 Engine accessory 1 5071195-
72 Z50H. 1A-2 1 柴油机回油管 Φ8×1100 Hose 1 5071195-
73 Z50H. 1A-23 1 连接法兰 Coupling 1 5071195-
74 Z50H.1A.12 1 护风圈 Ring 1 5071195-
75 B-Q020490-00003 1 垫圈 12 Washer 4 5071195-
76 B-G057830-00043 1 螺栓 M12×45ZnD Blot 4 5071195-
77 B-G057830-00130 1 螺栓 M6×16ZnD Blot 2 5071195-
78 Z50H. 1A. 3 1 柴油机后支座 Support 2 5071195-
79 B-G057830-00075 1 螺栓 M16×45-10.9ZnD Blot 8 5071195-
80 Z30.1.2 1 缓冲橡胶垫 Cushion 4 5071195-
81 Z30.1-10 1 垫圈 Washer 8 5071195-
82 W-02-00129 1 预紧力弹簧卡箍 99 Clamp 4 5071195-
83 W-02-00127 1 中冷器进气接管 89×140 Hose 2 5071195-
84 W-02-00203 1 预滤器 KA50-5 Air Precleaner 1 5071506-
