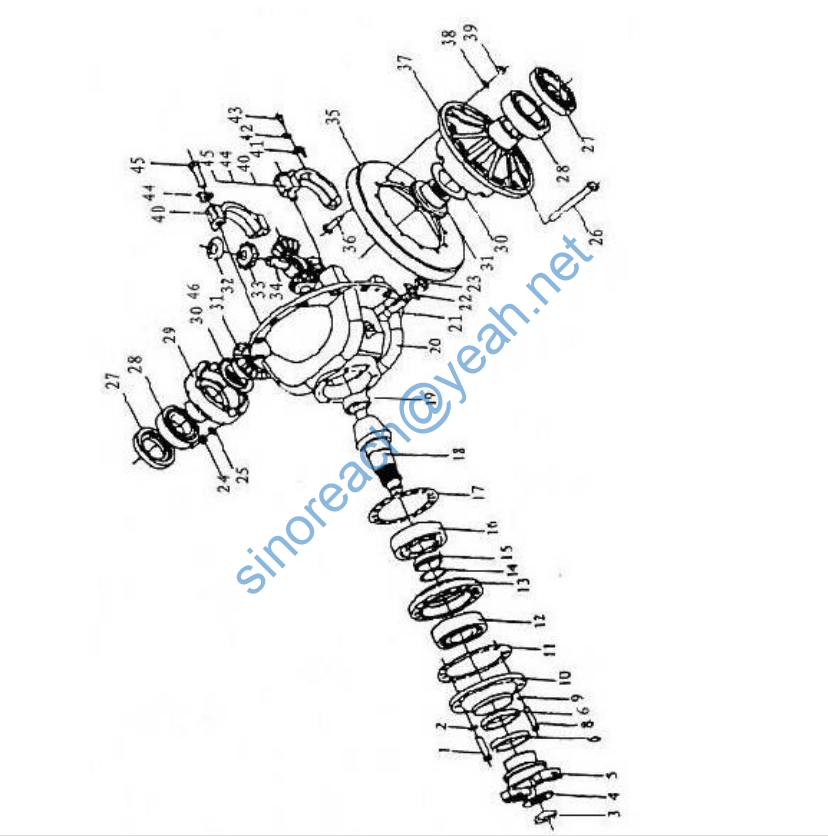

Z50H.6.1/8.1 前/后桥主传动 Front /Rear Axle Main Drive

1 B-G057850-00015 1 螺栓M14×1. 5×55-10.9 ZnD Bolt 14 5071195-
2 B-G000930-00005 1 垫圈 14 Spring washer 14 5071195-
3 Z50B.6.1-1 1 锁紧螺母 Retaining nut 2 5071195-
4 Z50B.6.1-2 1 垫圈 Washer 2 5071195-
5 Z50B.6.1.1A 1 输入法兰组件 Flange ass’y 2 5071195-
6 W-15-00111 1 密封圈|AE3733E0(NOK) Oil seal 4 5071195-
8 B-G057850-00007 1 螺栓M12×1. 5×55-10.9 ZnD Bolt 2 5071195-
9 B-G000930-00003 1 垫圈 12 Spring washer 2 5071195-
10 Z50B.6.1-24 1 端盖 Cover 2 5071195-
11 Z50B.6.1-23 1 密封垫 Gasket 2 5071195-
12 B-G002970-00010 1 轴承 31313 Bearing 2 5071195-
13 Z50B.6.1-22 1 轴承座 Bearing seat 2 5071195-
14 Z50B.6.1-25 1 调整垫片 Adjust washer 2 组 5071195-
15 Z50B.6.1-20 1 轴承隔套 Bearing sleeve 2 5071195-
16 B-G002970-00011 1 轴承 31314 Bearing 2 5071195-
17 Z50B.6.1-21 1 调整垫片 Adjust washer 2 组 5071195-
18
Z50B.8.1-2A 1 主动螺旋齿轮（后桥） Pinion gear（L） 1 5071195-
Z50B.6.1-18A 1 主动螺旋齿轮（前桥） Pinion gear（R） 1 5071195-
19 W-03-00065 1 滚动轴承|NUP2307EC(SKF) Bearing 2 5071195-
20 Z50B.6.1-3 1 托架 Bracket 2 5071195-
21 Z50B.6.1.2 1 止推螺栓 Bolt 2 5071195-
22 Z50B.6.1-4 1 锁紧垫片 Lock blade 2 5071195-
23 B-G061730-00014 1 螺母 M27×2 Nut 2 5071195-
24 B-G008890-00006 1 螺母 M16×1.5-4H Nut 16 5071195-
25 B-G008480-00005 1 垫圈 16 Washer 16 5071195-
26 Z50B.6.1-13 1 螺栓 Bolt 16 5071195-
27 Z50B.6.1-5 1 差速器螺母 Nut 4 5071195-
28 B-G002970-00021 1 轴承 32216 Bearing 4 5071195-
29 Z50B.6.1-12 1 差速器半壳 Differential 2 5071195-
30 Z50B.6.1-17 1 半轴齿轮垫片 Axle shaft gear 4 5071195-
31 Z50B.6.1-15A 1 半轴齿轮 Side gear 4 5071195-
32 Z50B.6.1-11 1 锥齿轮垫片 Bevel gear pad 8 5071195-
33 Z50B.6.1-10A 1 锥齿轮 Bevel gear 8 5071195-
34 Z50B.6.1-16A 1 十字轴 Shaft 2 5071195-
35
Z50B.6.1-9A 1 从动螺旋伞齿轮（前桥） Gear（L） 1 5071195-
Z50B.8.1-1A 1 从动螺旋伞齿轮（后桥） Gear（R） 1 5071195-
36 Z50B.6.1-26 1 螺栓 Bolt 24 5071195-
37 Z50B.6.1-8 1 差速器壳体 Differential case body 2 5071195-
38 B-G008480-00003 1 垫圈 14 Washer 24 5071195-
39 B-G008890-00004 1 螺母 M14×1.5-4H Nut 24 5071195-
40 Z50B.6.1-14 1 瓦盖 Cover 4 5071195-
41 Z50B.6.1-6 1 锁紧片 Lock spacer 4 5071195-
42 B-G008550-00001 1 垫圈 10 Washer 4 5071195-

43 B-G057860-00001 1 螺栓 M10×1×20 Bolt 4 5071195-
44 B-G008550-00003 1 垫圈 22 Washer 8 5071195-
45 B-G057820-00239 1 螺栓 M22×85 Bolt 8 5071195-
46 B-G001190-00018 1 销 A6x8 Pin 4 5071195-
