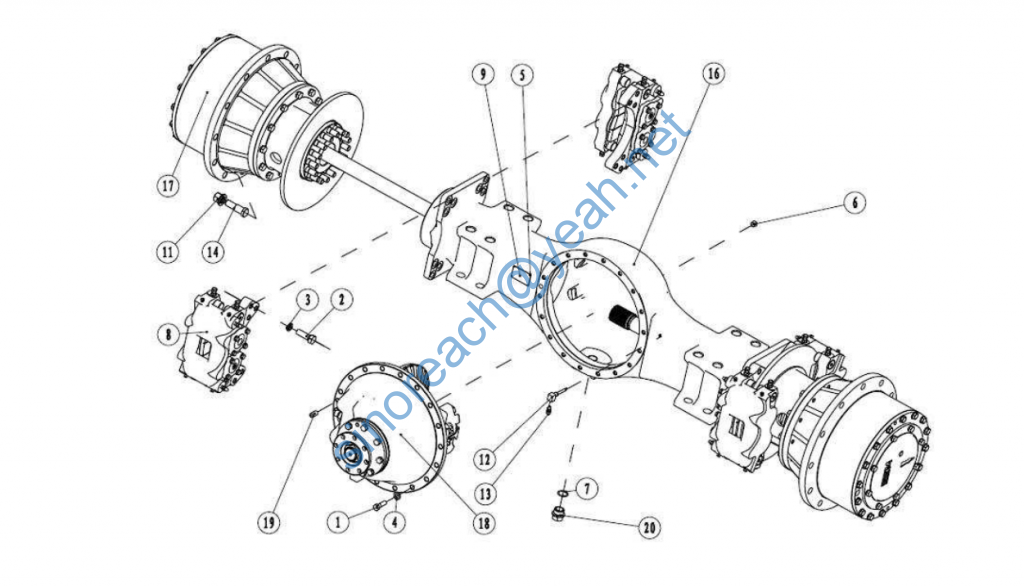

后桥组件 Rear Axle Group

1 螺栓 M14×50-10.9 Bolt B040861450 18
2 螺栓 M20×60 Bolt B040912060 24
3 垫圈 20 Washer B060112005 24
4 垫圈 14 Washer B060411403 18
5 铆钉 2×5 rivet B090110205 4
6 螺塞 B ZG3/4″ plugB B110500304 1
7 O 形圈 32.5×3.55 O ring B160130325 1
8 制动钳 50、60 自制桥用
brake pliers used for the
self-made axle of 50,60 W041200000 2
9 驱动桥标牌 drive axle nameplate Z610240070 2
10 轮辋螺母组件(右) rim nut Z610240430 12
11 轮辋螺母组件(左) rim nut Z610241100 12
12 呼吸器座 breather seat Z620590280 1
13 呼吸器 breathe installation iron Z620590310 1
14 轮辋螺栓（左） rim bolt Z6205904300 12
15 轮辋螺栓（右） rim bolt Z6205904400 12
16 桥壳 axle case Z62059131 1
17 轮边组件 final reductor component Z62059111 2
18 后桥主减及差速器组件
Main reducer and differential
grouop Z62059420 1
19 定位销 locating pin Z640060060 1
20 放油螺塞 oil drain screw Z640060320 1
