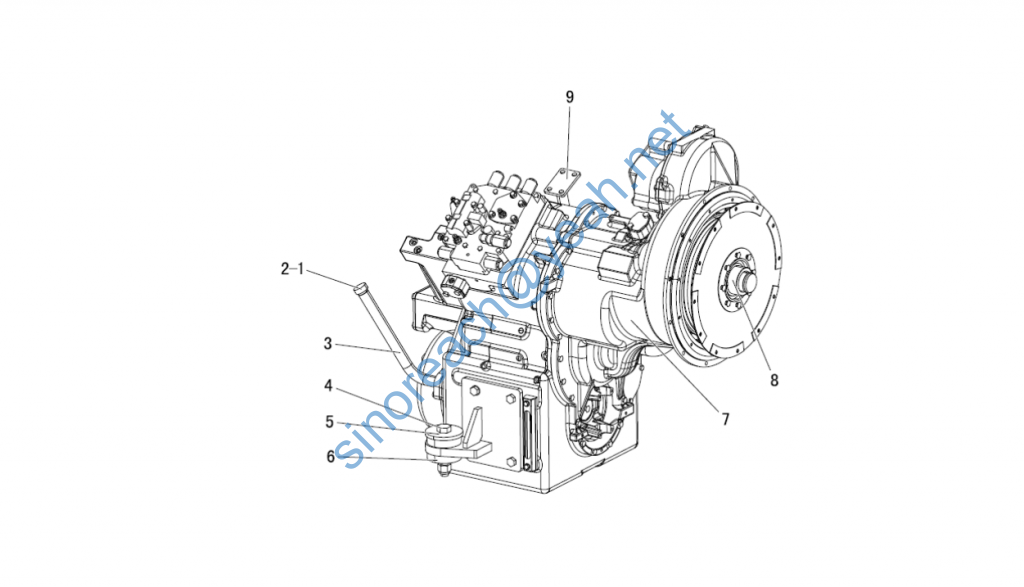

SEM160A 变速箱传动系统 SEM 160A XSMN system

0 尼龙锁紧螺母 M24 Cap B050212419 GB/T889.1-2000 2
0 螺栓 M10×25 Washer B040911025 GB/T5783-2000 3
0 螺栓 M10×30 Oil filling pipe B040911030 GB/T5783-2000 2
0 垫圈 O -ring B060311003 GB96-85 3
1 加油盖 oil filling cover Z5A01002000 650 1
2 橡胶垫 rubber shim Z5A010003 1
3 加油管焊接组件 WELDING TUBE AS. Z5B302001 1
3 O 型密封圈 SEAL-O-RING-STOR(SAE 7/16-20) JB326302001 1
4 螺栓 M24×140 Location sleeve B040810015 GB/T5782-2000 2
5 减振垫垫片 damping gasket Z5A01402800 2
6 Marc_50 减振垫 Marc mount Z5A01402300 2
7 SEM160A 变速箱(配 5 吨机) TRANSMISSION AR JB325956200 1
8 定位套(上柴) retaining cover JB3408736 1
9 658C 双联泵支架 tandem pump bracket Z5B302012
