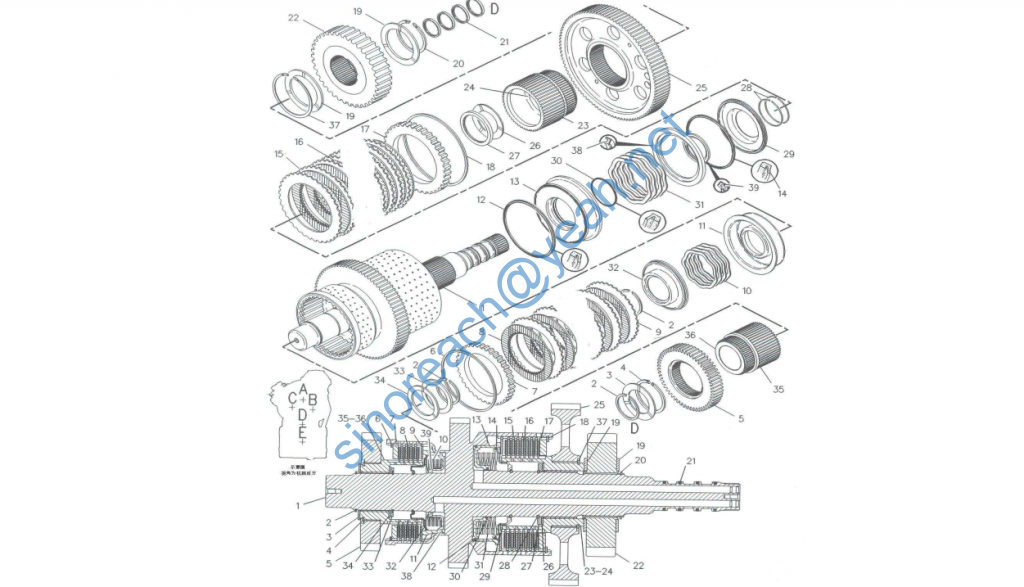

1 3 档轴 Shaft assembly

1 ⅠⅢ轴组件 I Ⅲshaft assembly JB3263019 1
2 挡圈 Stell ring JB326379800 3
3 止推片 thrust plate JB326379100 1
4 挡圈 Stell ring JB326078500 1
5 3 档齿轮 3 gear JB326381102 1
6 挡圈 Stell ring JB326068200 1
7 离合器压板 clutch pressure plate JB326378403 1
8 主动摩擦片 Drive friction disc JB326380101 7
9 从动片 driven shim JB326083803 6
9 从动片 driven shim JB326375800 1
10 波形弹簧 Wave spring JB326068300 1
11 活塞 Piston JB326068801 1
12 旋转密封圈 circumgyrate seal ring JB326299300 1
13 活塞 Piston JB326381201 1
14 旋转密封圈 circumgyrate seal ring JB326381600 1
15 从动片 driven shim JB326375701 1
15 从动片 driven shim JB326083903 9
16 主动摩擦片 Drive friction disc JB326079101 11
17 离合器压板 clutch pressure plate JB326378503 1
18 挡圈 Stell ring JB326298800 1
19 止推片 thrust plate JB326378900 2

20 挡圈 Stell ring JB326298600 1
21 旋转密封圈 circumgyrate seal ring JB326068600 4
22 1/3 轴输出齿轮 The 1/3 output shaft gear JB326382802 1
23 1 档齿轮毂组件 1 speed gear hub assembly JB328619800 1
23 1 档齿轮毂 1 speed gear hub JB326378104 1
24 滑动轴承 slide bearing JB326296601 1
25 1 档齿轮 1 gear JB326381402 1
26 止推片 thrust plate JB326379001 1
27 挡圈 Stell ring JB326381000 1
28 挡圈 Stell ring JB326068700 2
29 平衡活塞 Equalizer piston JB326381300 1
30 旋转密封圈 circumgyrate seal ring JB326299400 1
31 波形弹簧 Wave spring JB326861500 1
32 平衡活塞组件 Equalizer piston component JB326377700 1
33 挡圈 Stell ring JB326379900 1
34 止推片 thrust plate JB326378701 1
35 2/3 档齿轮毂 2/3 gear gear hub JB326378003 1
35 2/3 档齿轮毂组件 2/3 shift gear hub assembly JB328619700 1
36 滑动轴承 slide bearing JB326296402 1
37 挡圈 Stell ring JB326298700 1
38 旋转密封圈 circumgyrate seal ring JB326299200 1
39 旋转密封圈 circumgyrate seal ring JB326299100 2
