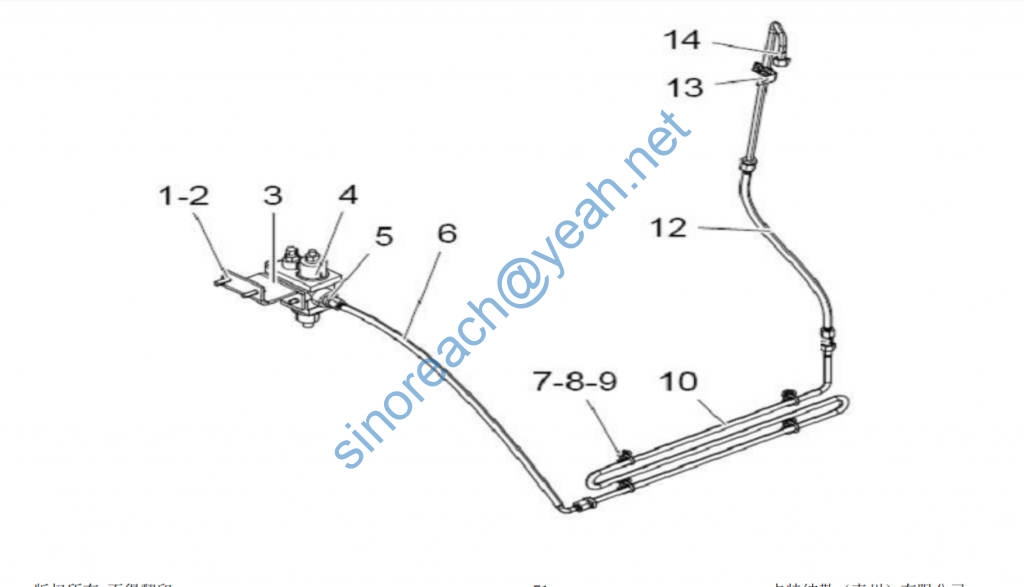

上柴发动机制动组件 Engine braking system

1 螺栓 M10×25 Bolt M10×25 B040911025 GB/T5783-2000 2
2 垫圈 10 Washer 10 B060411002 GB/T97.1-2002 2
3 油水分离器支架 Fuel water separator Bracket Z5B361039 1
4 油水分离器组合阀 Fuel water separator valve W110000160 1
5 油水分离器进出气接头 Fuel water separator inlet or outlet air connection fitting Z310340020 2
6 金属软管组件 M18 Brake hose assembly Z5B376202 1
7 U 型螺栓 U bolt Z310530100 5
8 螺母 M6 Nut M6 B050330605 GB6170-2000 10
9 垫圈 6 Washer 6 B060410602 GB/T97.1-2002 10
10 散热弯管总成 Radiator pipe assembly Z5B336017 1
12 金属软管组件 M18 Brake hose assembly Z5B376201 1
13 支架 Bracket Z6B372004 1
14 空压机出气管组件 Air compressor outlet hose component Z6B372001 1
