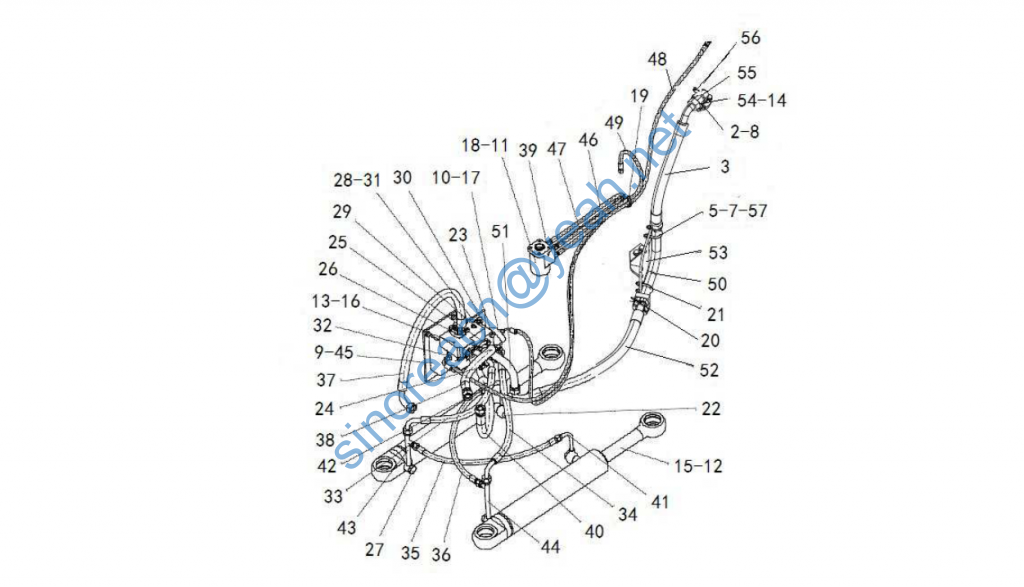

Steering hydraulic system

1 螺钉 M10×70 Threaded scew M10×70 B010411070 GB/T70.1-2000 4
2 螺栓 M10×30 Bolt M10×30 B040911030 GB/T5783-2000 24
3 螺栓 M12×25 Bolt M12×25 B040911225 GB/T5783-2000 3
4 螺栓 M12×30 Bolt M12×30 B040911230 GB/T5783-2000 11
5 螺母 M8 Nut M8 B050330807 GB/T6170-2000 4
6 螺母 M12 Nut M12 B050331211 GB/T6170-2000 3
7 垫圈 8-200HV Washer 8 B060330802 GB96.1-2002 4
8 垫圈 10-300HV Washer 10-300HV B060461002 GB/T97.1-2002 28
9 垫圈 12-300HV Washer 12-300HV B060461203 GB/T97.1-2002 16
10 O 型圈 11.2×2.65 O-ring 11.2×2.65 B160120112 GB/T3452.1-2005 2
11 O 形圈 17×2.65 O-ring 17×2.65 B160120170 GB/T3452.1-2005 4
12 O 形圈 23.6×3.55 O-ring 23.6×3.55 B160130236 GB/T3452.1-2005 8
13 O 形圈 31.5×3.55 O-ring 31.5×3.55 B160130315 GB/T3452.1-2005 1
14 O 形圈 37.5×3.55 O-ring 37.5×3.55 B160130375 GB/T3452.1-2005 2
15 转向缸（派克密封件）φ100×455 Steering cylinder（PECKER seals） φ100×455 W050900001 2
16 卸载阀 SXH25（15.5MPa） Safety valve SXH25（15.5MPa） W082000002B 1
17 流量放大阀 ZLF25AⅡ Flow enlarge valve ZLF25AⅡ W083100000B 1
18 转向器 BZZ-125(502-3123) Steering gear BZZ-125(502-3123) W083200000B 1
19 扎带 ZD200×8 Clip ZD200×8 W110001370 1
20 测压接头 TC-D10 Pressure tap fitting TPC-D10 W152200000 1
21 U 型螺栓 U bolt Z3B20024000 2

22 空心螺栓 Hollow bolt Z520180480 ZL50F.18-7 2
23 先导工作阀固定螺栓 142 Pilot implement valve retaining bolt 142 Z520520480 (X)ZL50F.19-4 3
24 拼合法兰 Split flange Z5A20004100 1
25 拼合法兰 Split flange Z5B01901000 1
26 拼合法兰 Split flange Z610200060 ZL60D.20-6 5
27 铰接螺栓 Joint bolt Z620180160 ZL60F.18-1 2
28 垫圈 Washer Z640180040 6
29 减震垫 Shock absorber Z640180050 ZL60H 3
30 隔套 Spacer sleeve Z640180070 3
31 减震垫 Shock absorber Z640180080 ZL60H 6
32 接头 fitting Z6B01800500 2
33 Φ19 高压软管组件 Φ19 High pressure hose assembly Z6B01801800 1
34 Φ19 高压软管组件 Φ20 High pressure hose assembly Z6B01802000 1
35 Φ12.7 高压软管组件 Φ12.7 High pressure hose assembly Z6B01802200 1
36 Φ12.7 高压软管组件 Φ12.8 High pressure hose assembly Z6B01802200 1
38 卸载阀回油管组件 Retune oil pipe assembly Z6B01802600 1
39 接头 Fitting Z6B01802800 4
40 Φ25 回油软管组件 Φ25 retune oil hose component Z6B01803200 1
41 左转向缸后接头 Left steering cylinder rear fitting Z6B01803400 1
42 右转向缸后接头 Right steering cylinder rear fitting Z6B01803600 1

43 右转向缸前接头 Right steering cylinder front fitting Z6B01803800 1
44 左转向缸前接头 Left steering cylinder front fitting Z6B01804000 1
45 固定支架 Bracket Z6B01804200 1
46 Φ7.9 先导油管组件 Φ7.9 pilot oil hose assembly Z6B201007 1
47 Φ7.9 先导油管组件 Φ7.9 pilot oil hose assembly Z6B201009 1
48 Φ7.9 先导油管组件 Φ7.9 pilot oil hose assembly Z6B201013 1
49 Φ7.9 先导油管组件 Φ7.9 pilot oil hose assembly Z6B201015 1
50 硬管组件 Tube assembly Z6B206011 1
51 硬管组件 Tube assembly Z6B206003 1
52 Φ25 高压软管组件 Φ25 High pressure hose assembly Z6B206005 1
53 固定支架组件 Bracket component Z6B206007 1
54 拼合法兰 Split flange Z6B207006 1
55 过渡接头 transition adapter W154700510B S1CFL9-36-20M14 1
56 垫圈
8 Gasket B060110802 GB93-87 4
57 接头 onnector Z520520920
