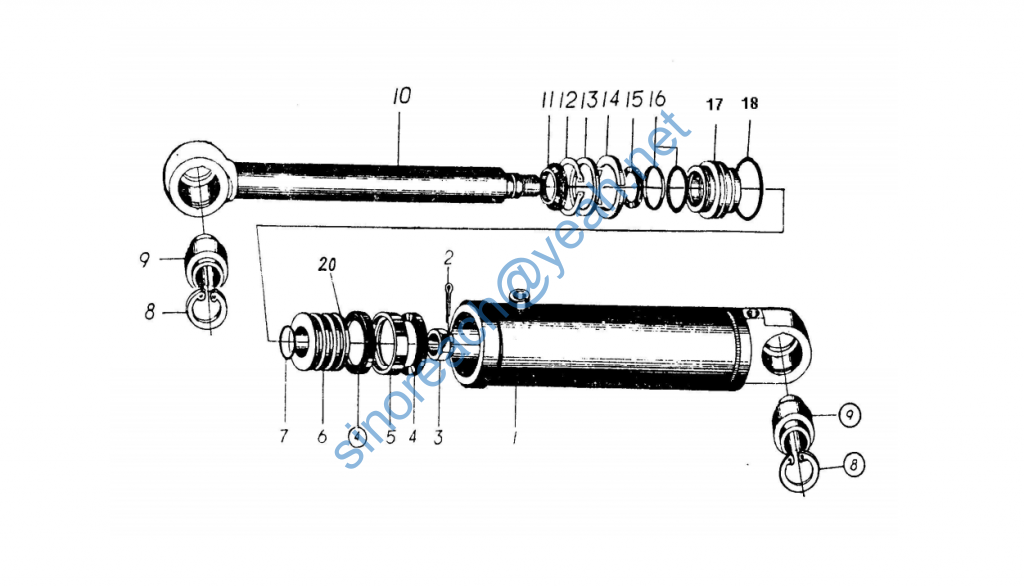

转向油缸 Steering cylinder

1 缸体 Cylinder block W050900080 1
2 开口销 6.3X60 Cotter pin 6.3X60 GB91-86 1
3 开槽螺母 M36X2 Slotted nut M36X2 W050800120 1
4 支撑环 100X3X15 Supporting ring 100X3X15 2
5 密封环 100 Ring seal 100 1
6 活塞 Piston W050900100 1
7 O 形圈 40X3.1 O-ring 40X3.1 GB1235-76 1
8 孔用弹性挡圈 75 Snap ring for hole75 GB893.1-86 4
9 向心关节轴承 GE50ES Radial Joint bearing GE50ES B120525035 2
10 活塞杆 Piston rod W050900070 1
11 防尘圈 55 Dust seal55 1
12 挡圈 Retainer W050900160 2
13 挡圈 90 Retainer 90 GB894.1-86 1
14 孔用卡键 Clip key for hold W050900110 1
15 YX 型密封圈 55 YX-Seal ring 55 2
16 挡环 Snap ring 1
17 O 形密封圈 60X3.1 O-ring 60X3.1 1
18 导向套 Guide collar W050900090 1
19 O 形圈 100X5.7 O-ring 100X5.7 GB1235-76 1
20 垫环 Gasket ring
