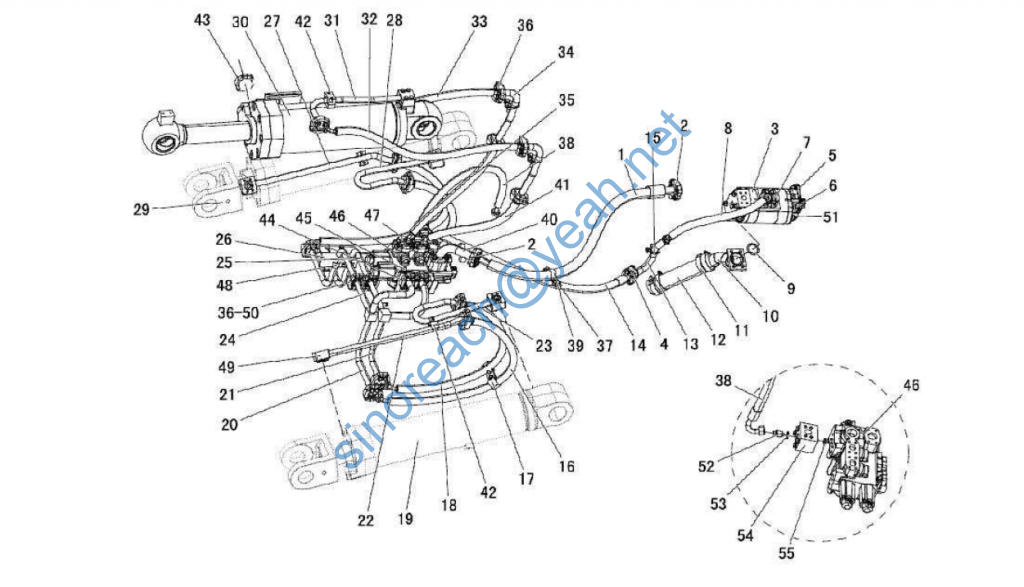

工作装置液压系统 Implement hydraulic system

1 工作阀回油管 oil return pipe of implement valve Z6B01904500 1
2 拼合法兰 Split flange Z610200090 ZL60D.20-9 2
3 齿轮泵 Gear pump W067900000B 1
4 测压接头 pressure tap W152200000 TC-D10 1
5 双头螺柱 Double thread stud B100111235 GB/T869-1986 2
6 螺母 Nut B050331211 GB/T6170-2000 6
7 拼合法兰 Split flange Z520180060 ZL50F.18-6 1
8 高压软管组件 High pressure hose assembly Z6B207009 1
9 O 形圈 O-ring B160130690 GB3452.1-2005 1
10 双联泵吸油接头 Pump suction connector Z5B222008 Z5B222008 1
11 喉箍 Hose clamp B190120800 QC/T619-1999 4
12 低压耐油胶管 Lower pressure hose Z5B222007 Z5B222007 1
13 硬管组件 Tube assembly Z6B207007 1
14 举升高压软管总成
Lifting high pressure hose
assembly Z5B20001300 1
15 U 型螺栓 U bolt Z3B20024000 2
16 高压软管组件 High pressure hose assembly Z6B01902000 2
17 管卡 Clip Z520190070 ZL50F.19-7 4
18 高压软管组件 High pressure hose assembly Z6B01902200 2
19 左举升缸(派克) Left lifting cylinder W051800001 1
20 工作阀举升小腔接管
Implement vlave small chamber
jo Z6B01901600

21 工作阀举升大腔接管
Implement vlave big chamber joint
tube Z6B01901200 1
22 左举升缸小腔接管
Left lifting cylinder connector
pipe Z6B01903200 1
23 左举升缸大腔接管
Left lifting cylinder connector
pipe Z6B01903400 1

24 接管Ⅱ Connector II Z6B01901800 1
25 接管Ⅰ Connector I Z6B01901400 1
26 固定板(右) Fixed plate ( R ) Z6B207005 1
27 右举升缸小腔接管
Right lifting cylinder connector
pipe Z6B01903800 1
28 右举升缸大腔接管
Right lifting cylinder connector
pipe Z6B01903600 1
29 右举升缸 right lifting cylinder W051900001 1
30 转斗缸 Tilt cylinder W050700003 1
31 翻斗缸硬管 Tilt cylinder tube Z6B01903000 1
32 高压软管组件 High pressure hose assembly Z6B01902600 1
33 高压软管组件 High pressure hose assembly Z6B01902800 1
34 翻斗油管中间接头 Tilt cylinder mid-tube Z6B019042 2
35 高压软管组件 High pressure hose assembly Z6B01902400 1
36 拼合法兰 Split flange Z610200060 ZL60D.20-6 17
37 管卡Ⅰ Clip I Z520522490 1
37 销轴 pin Z520522600

38 高压软管组件 High pressure hose assembly Z6B0180240

39 管卡Ⅱ Clip II Z520522500 1
40 工作阀回油接头组件
Implement valve oil return
connector AS Z6B01904000 1
41 高压软管组件 High pressure hose assembly Z6B01900800 1
42 管夹Ⅰ Clip I Z610210050 ZL60D.21-5 3
43 拼合法兰 Split flange Z610200080 ZL60D.20-8 1
44 拼合法兰 Split flange Z5B01901000 2
44 O 形圈 O-ring B160130375 GB/T3452.1-2005 2
45 先导工作阀固定螺栓 Pilot-implement valve nut Z520520490 (X)ZL50F.19-11 2
45 先导工作阀固定螺栓 Pilot-implement valve nut Z520520480 (X)ZL50F.19-4 1
46 工作阀 Implement valve W271300000B 1
46 工作阀主安全阀 Main safety valve W271300030B 1
46 大腔过载阀 20 Big chamber over load valve W271300020B 1
46 小腔过载阀 12 Small chamber over load valve W271300010B 1
47 拼合法兰 Split flange Z5A20004100 2
48 管卡 Clip Z5205229100 1
49 O 形圈 O-ring B160130412 GB/T3452.1-2005 5
50 O 形圈 O-ring B160130329 GB/T3452.1-2005 2
51 垫片 Gasket Z5A20202700 1
52 接头 Connection fitting Z5A20001600

53 O 形圈 O-ring B160130300 GB/T3452.1-2005 1
54 工作阀进油块 Implement valve input block Z6B01901100 1
55 O 形圈 O-ring B160130450 GB/T3452.1-2005
