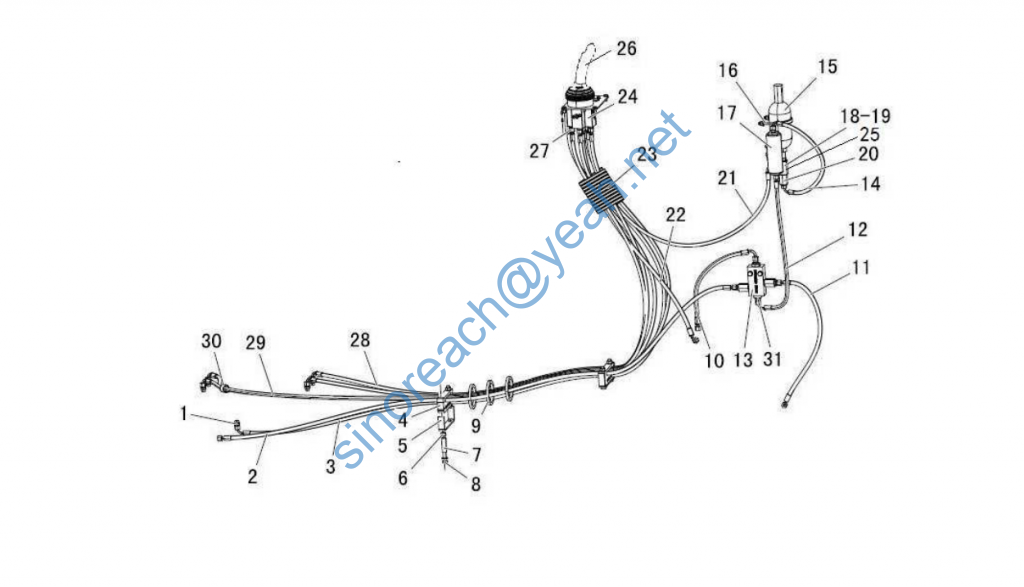

先导液压系统 Pilot hydraulic system

1 接头 Fitting Z3A20001600 6
2 先导油管组件 Pilot oil tube assembly Z6B03100100 1
3 先导油管组件 Pilot oil tube assembly Z6B03100500 1
4 先导管固定卡 Pilot pipe fixed clip Z6B03102400 2
5 支架 Bracket Z520520800 2
6 螺母 M12 Nut M12 B050331211 GB/T6170-2000 5
7 隔套 Spacer sleeve Z520520810 4
8 螺栓 M12×85 Bolt M12×85 B040811285 GB/T5782-2000 4
9 扎带 Clip W110023590 ZD200×8 3
10 先导油管组件 Pilot oil tube assembly Z5B03100300 5/16 1
11 先导油管组件 Pilot oil tube assembly Z6B03101000 1/4 1
12 先导油管组件 Pilot oil tube assembly Z6B03102100 1
13 压力选择阀 Pressure selection valve W272400000B SF8(带单向阀) 1
14 先导油管 Pilot hose Z5A20000100 1
15 先导蓄能器 Accumulator W110021000
NXQ △ -L0.63/ ※
-H 1
15 O 形圈 26.5×2.65 O-ring B160120265 GB/T3452.1-2005 1
16 U 形螺栓 U-bolt Z520520930 1
16 尼龙锁紧螺母 M10×1.25 Locknut B500151013 GB/T889.2-200
0 2
17 压力过滤器(GEN1 先导) Pressure filter W110015500A YL-161-00 1
17 压力过滤器滤芯 Pressure filterFilter W110015510A YL-161-100 1
18 四通接头组件 Four-way adapter assembly Z6B031025

19 测压接头 Pressure tap fitting W152200000 TC-D10 1
20 单向阀 Check vlave W272400010B 1
21 先导油管组件 Pilot oil tube assembly Z5B031015 1
22 先导油管组件 Pilot oil tube assembly Z5B031009 1
23 胶管保护套 Boot Z5A052008 1
24 先导阀（2JS） Pilot valve W272600000B 321-8705 1
24 普林斯吸盘修理包 Repair package W42099100 12-00821 1
25 接头 Fitting W154700010 1
26 手柄组件 Handle W42133000 DXS-01-00S 1
27 接头 Fitting Z3A20004500 4
28 先导油管组件 Pilot oil tube assembly Z6B03101900 2
29 先导油管组件 Pilot oil tube assembly Z6B03101600 2
30 管卡 Pipe clamp Z5A01701900 1
31 接头 Fitting Z520520920 3
0 螺栓 M10×55 Bolt M10×55 B040811055 GB/T5782-2000 1
0 螺栓 M8×20 Bolt M8×20 b040910820 GB/T5783-2000 1
0 螺栓 M10×20 Bolt M10×20 B040911020 GB/T5783-2000 1
0 垫圈 12-300HV Washer 12-300HV B060461203 GB/T97.1-2002 2
0 垫圈 10-300HV Washer 10-300HV B060461002 GB/T97.1-2002 8
0 垫圈 8 Washer 8 B060410802 GB/T97.1-2002
