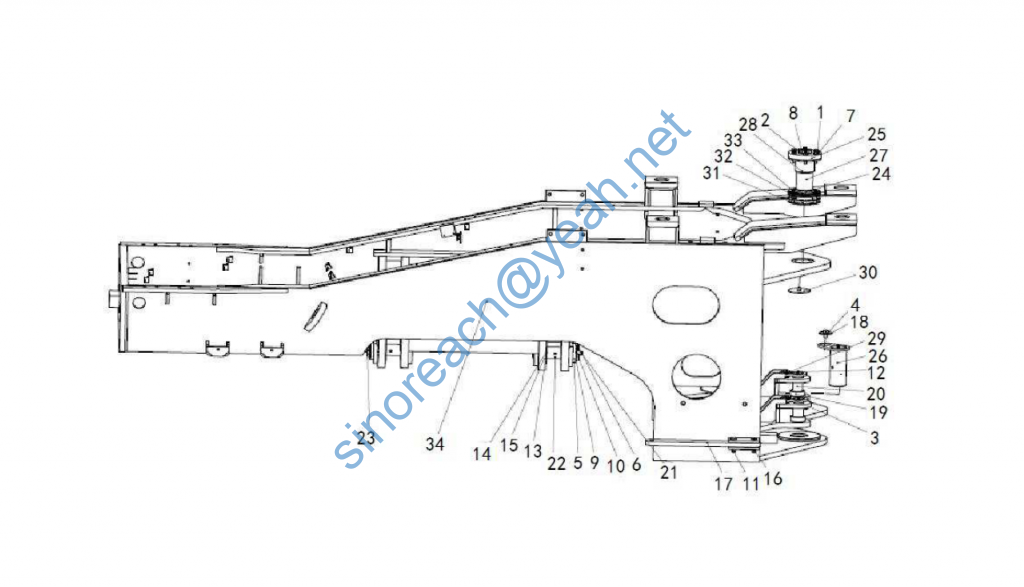

后车架 The rear frame assembly

1 螺栓 M12X50 BoltM12X50 B040811250 GB/T5782-2000 6
2 螺栓 M16X85 BoltM16X85 B040811685 GB/T5782-2000 4
3 螺栓 M12X20 BoltM12X20 B040911220 GB/T5783-2000 3
4 螺栓 M16X25 BoltM16X25 B040911625 GB/T5783-2000 1
5 螺栓 M20X45 BoltM20X45 B040912045 GB/T5783-2000 4
6 螺栓 M10X1X45 BoltM10X1X45 B041200002 JB999-77 4
7 垫圈 12 Washer12 B060411203 GB/T97.1-2002 6
8 垫圈 16 Washer16 B060411603 GB/T97.1-2002 4
9 垫圈 20 Washer20 B060412003 GB/T97.1-2002 4
10 组合密封垫圈 Combine seal gasket B060811002 JB/T982-1977 8
11 销 6.3X30 Pin6.3X30 B080210016 2
12 油杯 Oil cup B150101000 JB/T7940.1-1995 5
13 调整垫 Adjustment shim Z310010070 2
14 调整垫 Adjustment shim Z310010110 2
15 调整垫 Adjustment shim Z310010120 2
16 插销 Pin Z310020020 2
17 锁止杆 Safety rod Z320020010 1
18 平垫 Washer Z520020890 1
19 支承垫 Support pad Z520030010 2
20 转向缸后销轴总成 steering cylinder rear pin AS Z520030621 2
21 摆架前销润滑油管 Oscillate frame front pin lu Z520030690

22 摆架销轴总成 oscillate frame pin assembly Z520030791 2
23 摆架后销润滑油管 Oscillate frame rear Pin lubricating line Z520030820 1
24 下隔套 Lower spacer Z520031200 1
25 上铰接销轴固定盘 Upper jiont Pin mandrelpalte Z520031230 1
26 下铰接销轴总成 Lower joint pin Z6B003043 1
27 上铰接销轴 Upper jiont Pin mandrel Z620030360 1
28 上隔套 Upper spacer Z620030370 1
29 平垫 Washer Z640020100 2
30 固定盘 Palte Z640030030 1
31 调整垫Ⅰ Adjustment shimⅠ Z640030070 10
32 调整垫Ⅱ Adjustment shimⅡ Z640030080 8
33 调整垫Ⅲ Adjustment shimⅢ Z640030090 4
34 后车架组件 Re
