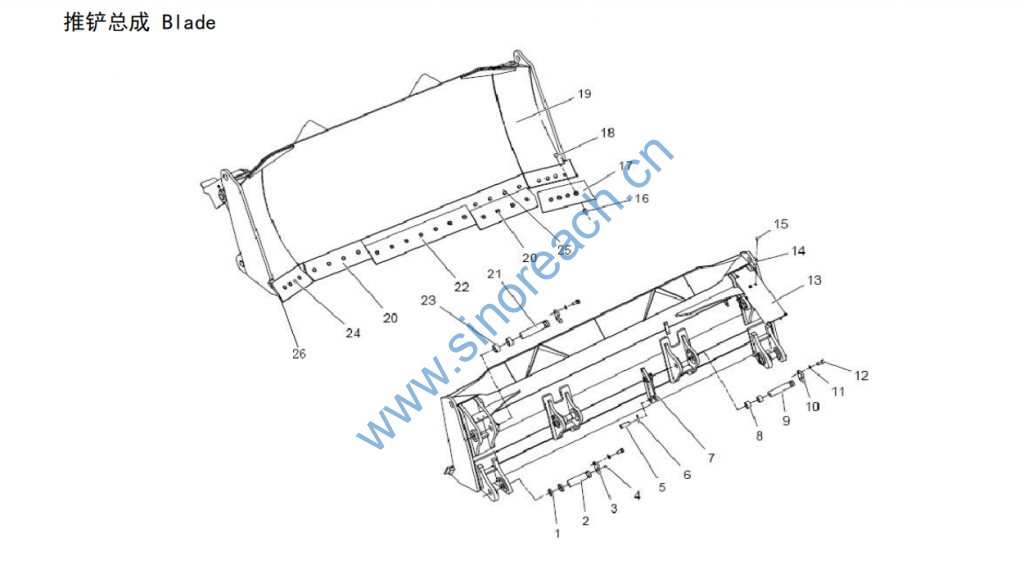

推铲总成 Blade

1 隔套 Spacer TD16006050 4
2 销轴 Bearing TD16053033 2
3 定轴板 Shaft positioning plate TD16053034 4
4 油杯 M10×1 Oil cup M10×1 B150101000 JB/T7940.1-1995 6
5 销轴 B30×80 Bearing B30×80 B080333080 GB882-2008 2
6 开口销 6×70 Cotter pin 6×70 B080210670 GB/T91-2000 2
7 连杆 Rod TD16006037 1
8 隔套 Spacer TD16053030 4
9 销轴 Bearing TD16053032

10 定轴板 Shaft positioning plate TD16053037 2
11 垫圈 20 Washer 20 B060412003 GB/T97.1-2002 12
12 螺栓 M20×45 Bolt M20×45 B040912045 GB/T5783-2000 12
13 护罩 Guard TD16053029 1
14 垫圈 12-200HV Washer 12-200HV B060331203 GB/T96.1-2002 4
15 螺栓 M12×25 Bolt M12×25 B040911225 GB/T5783-2000 4
16 螺母 M20 Nut M20 B051632020 GB/T1229-2006 2

17 副刃板(左) Sub-cutting edge TD16006040 1
18 螺栓 M20×65 Bolt M20×65 B041802065 GB/T21934-2008 23
19 推铲组件 Ripper assembly TD16053001 1
20 副刃板 Sub-cutting edge TD16006042 2
21 销轴 Pin TD16053031 2
22 副刃板 Sub-cutting edge TD16006043 1
23 隔套 Spacer TD16006059 4
24 副刃板(右) Sub-cutting edge TD16006041 1
25 主刃板 Cutting edge TD16006005 1
26 侧主刃板 Side cutting edge TD16006007
