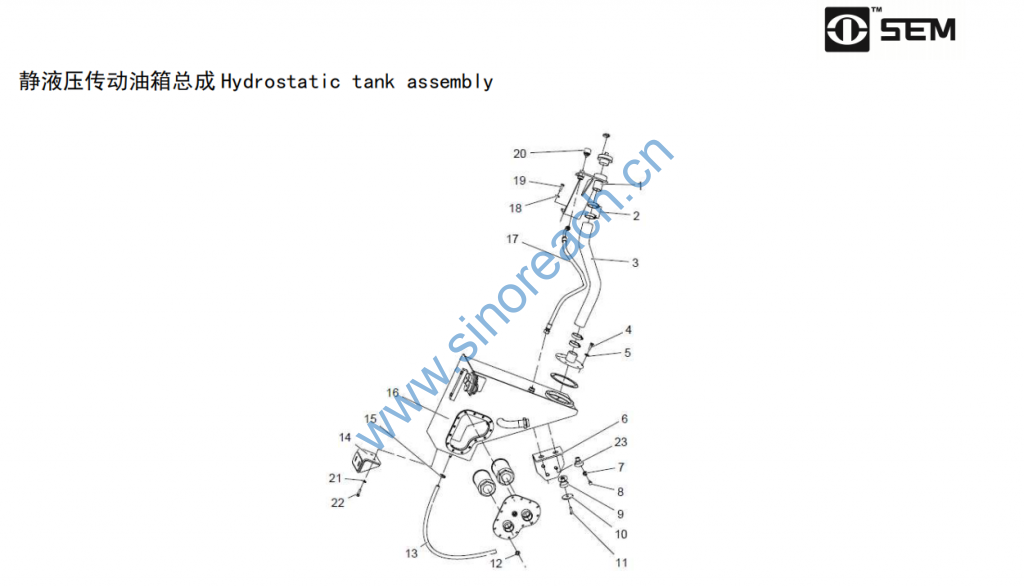

静液压传动油箱总成 Hydrostatic tank assembly

1 加油呼吸器支架组件 respirator Bracket TD16015006 1
2 喉箍 D52-D76 Hose clampD52-D76 B190120700 QC/T619-1999 4
3 加油管 Pipe TD16015024 1
4 螺栓 M8×20 BoltM8×20 B040910820 GB/T5783-2000 6
5 垫圈 8-300HV Washer8-300HV B060460802 GB/T97.1-2002 6
6 侧固定支架组件 Bracket assembly TD16015012 1
7 垫圈 12-200HV Washer12-200HV B060331203 GB96.1-2002 9
8 螺栓 M12×30 BoltM12×30 B040911230 GB/T5783-2000 5
9 减震垫 Shock absorber W42043000 6
10 加强垫 Gasket TD16015019 10
11 螺栓 M12×80 BoltM12×80 B040811280 GB/T5782-2000 6
12 垫圈 10 Washer10 B060411002 GB/T97.1-2002 14
13 暖风水管 II PipeII W48000112 1
14 下固定板组件 Retaining plate TD16015026 1
15 喉箍 d25 Hose clampd25 B190120250 JB/T8870-1999 1
16 静液压油箱组件 hydraulic tank assembly NTD1601500110

17 Φ12.7 高压软管组件 High pressure hose TD16018068 1
18 垫圈 10 Washer10 B060411002 GB/T97.1-2002 2
19 螺栓 M10×30 BoltM10×30 B040911030 GB/T5783-2000 2
20 呼吸器 183-3873 respirator 183-3873 W45000013 1
21 垫圈 12 Washer12 B060411203 GB/T97.1-2002 2
22 螺栓 M12×25 Bolt M12×25 B040911225 GB/T5783-2000 2
23 安装固定座 Installation fixed seat TD16015045
