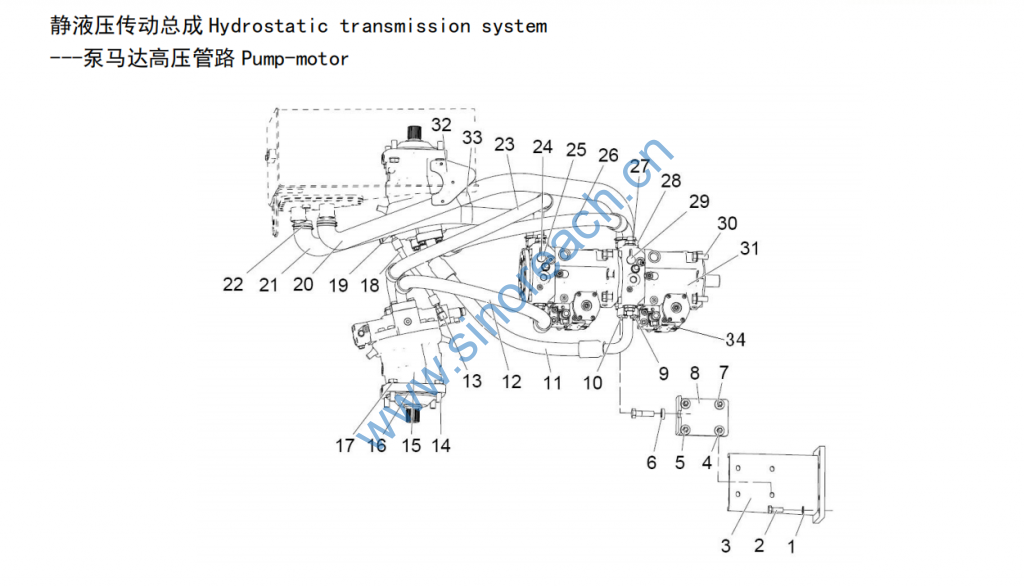

静液压传动总成 Hydrostatic transmission system
—泵马达高压管路 Pump-motor

1 垫圈 16-300HV Washer16-300HV B060461603 GB/T97.1-2002 6
2 螺栓 M16×45-10.9 BoltM16×45-10.9 B040961645 GB/T5783-2000 6
3 泵支架组件 I Pump Bracket I TD16018006 1
4 螺母 M12 NutM12 B050361211 GB/T6170-2000 4
5 螺栓 M12×45 BoltM12×45 B040861245 GB/T5782-2000 36
6 垫片 Gasket TD16018076 1
7 垫圈 12-200HV Washer12-200HV B060331203 GB96.1-2002 8
8 支撑板 Fixed board TD16018011 1
9 垫圈 12-300HV Washer12-300HV B060461203 GB/T97.1-2002 32
10 拼合法兰 Split flange W42000270 1P5767CAT 16
11 Φ31.8 高压软管组件 L=980 Pressure hose TD16018026 1
12 Φ31.8 高压软管组件 L=1245 Pressure hose TD16018028 1
13 过渡接头 Connection fitting W42000271 1488378CAT 1
14 螺栓 M20×70-10.9 BoltM20×70-10.9 B040862070 GB/T5782-2000 9
15 驱动马达 Drive motor W42057000 2
16 O 形圈 200×3.55 0-ring200×3.55 B16013200 GB/T3452.1-2005

17 垫圈 20-300HV Washer20-300HV B060462003 GB/T97.1-2002 12
18 Φ9.5 高压软管组件 L=350 Pressure hose TD16018032 1
19 过渡接头 Connection fitting W42000272 1488443CAT 1
20 前泵吸油管 Front Pump Oil pipe TD16059006 1
21 后泵吸油管 After Pump Oil pipe TD16059005 1
22 喉箍 D52-D76 Hose clampD52-D76 B190120700 QC/T619-1999 8
23 Φ31.8 高压软管组件 L=1455 High pressure hose TD16018030 1
24 测压接头 Pressure tap GC1645567 1645567 2
25 过渡接头 Connection fitting W42000293 2
26 Φ31.8 高压软管组件 L=1150 High pressure hose TD16018024 1
27 过渡接头 Connection fitting W42000283 S10X-24-60(SD09) 2
28 矩形圈 Rectangular ring W42000288 1P3704CAT 8
29 防尘帽 Dust cap W42000314 6V0852CAT 2
30 螺栓 M20×55-10.9 Bolt M20 × 55-10.9 B040962055 GB/T5783-2000 4
30 垫片 Gasket TD16018020 4
31 驱动泵 Drive pump W42056000 1

32 支架组件 Support components TD16059007 1
33 单管夹 Single pipe clamp TD16059011 2
34 测压接头 pressure tap W154700290 TC-E9/16
