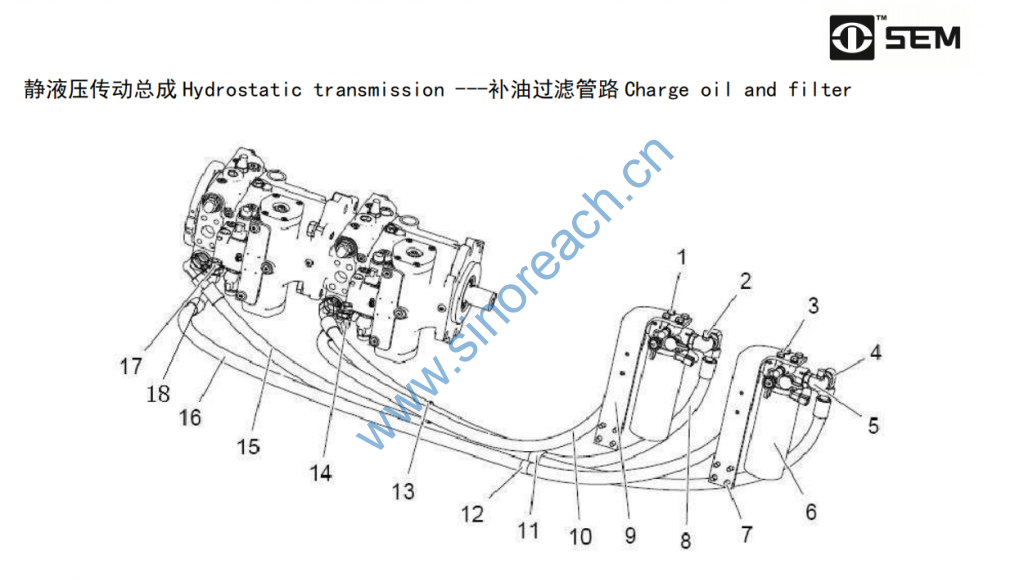

静液压传动总成 Hydrostatic transmission —补油过滤管路 Charge oil and filter

1 螺栓 M10×20 Bolt M10×20 B040911020 GB/T5783-2000 9
2 测压接头 Pressure tap W152200000 TC-D10 2
3 垫圈 10-300HV Washer 10-300HV B060461002 GB/T97.1-2002 17
4 过渡接头 Connection fitting W154700390 S2C9-30W 3
5 过渡接头 Connection fitting W42000296 S1CO9-30-12M10OG 2
6 过滤器 Filter JB326370601 2491750 2
过滤器滤芯 Filter W42000008 1
7 螺栓 M10×25 Bolt M10×25 B040911025 GB/T5783-2000 8
8 高压软管组件 Φ19.1 High pressure hose TD16059019 1
9 支架 Bracket TD16059012 2
10 高压软管组件 Φ19.1 High pressure hose TD16059017 1
11 双管卡 Φ19 Double Hose clip Φ19 Z5A01702100 1
12 管卡 Φ19 Clip Φ19 Z5A01701900 1
13 扎带 Clip W370000370A PLB4H-TLO, 1
14 过渡接头 Connection fitting W42000224 S1CO9-30-12OG 3
15 高压软管组件 Φ19.1 High pressure hose TD16059015 1

16 高压软管组件 Φ19.1 High pressure hose TD16059013 1
17 过渡接头 Connection fitting W42000256 S1CO-30-16 3
18 过渡接头 Connection fitting W154700230 S1CO-30-12 1
