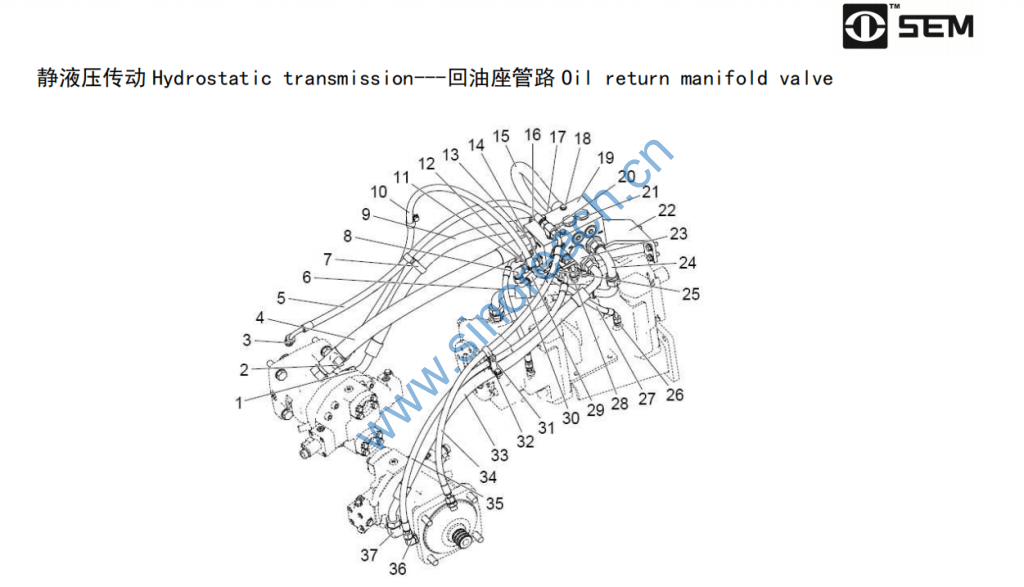

静液压传动 Hydrostatic transmission—回油座管路 Oil return manifold valve

1 过渡接头 Connection fitting W42000255 S1CO-36-12 1
2 过渡接头 Connection fitting W42000020 S1CO-22-08 1
3 过渡接头 Connection fitting W42000261 S1CM-22WD 2
4 Φ38.1 高压软管组件 High pressure hose TD16059024 1
5 Φ25 高压软管组件 L=1165 High pressure hose TD16018070 1
6 Φ9.5 高压软管组件 L=415 High pressure hose TD16018072 1
7 管卡 Clip Z5A20400500 2
8 过渡接头 Connection fitting W42000282 S2C9-22W 1
9 Φ25 高压软管组件 L=990 High pressure hose TD16018053 1
10 Φ12.7 高压软管组件 L=1405 High pressure hose TD16018055 1
11 过渡接头 Connection fitting W42000260 SACCO-18-18-08M10OG 1
12 过渡接头 Connection fitting W42000249 S2CF-22-08 1
13 过渡接头 Connection fitting W42000385 S1CO-45-24 1
14 单向阀 Check vlave W42069000 9T-1013CAT 1
15 高压软管组件 L=820 High pressure hose Z1B01901000 1
16 过渡接头 Connection fitting W42000253 S1CO-36-20

17 过渡接头 Connection fitting W271700000A S1CO-36-16 2
18 螺栓 M10X160 Bolt M10X160 B040820028 GB/T5782-2000 3
19 分油座组件 Grease seat components W42060000 1
20 测压接头 Pressure tap W152200000 TC-D10 2
21 过渡接头 Connection fitting W42000264 SACOC-22-08-22M10OG 1
22 固定座组件 Permanent seat components TD16018017 1
23 过渡接头 Connection fitting W42000243 S1CO-36-20L110 1
24 过渡接头 Connection fitting W42000275 S2C9-36WH85 1
25 过渡接头 Connection fitting W42000277 SACCO-22-22-08OG 1
26 过渡接头 Connection fitting W42000259 S1CO-18-06 2
27 Φ9.5 高压软管组件 L=415 Φ9.5High pressure hose TD16018074 1
28 接头 Connection fitting W42000013 S1CO-22-10 1
29 Φ12.7 高压软管组件 L=345 High pressure hose TD16018061 1
30 Φ25 高压软管组件 L=415 Φ25High pressure hose TD16018066 1
31 管卡（φ12.5） Clip（φ12.5） Z520171190 4
32 支架 Bracket TD16018005

33 Φ25 高压软管组件 L=1105 Φ25High pressure hose TD16018057 1
34 Φ12.7 高压软管组件 L=1055 Φ12.7High pressure hose TD16018068 1
35 Φ12.7 高压软管组件 L=1150 Φ12.7High pressure hose TD16018059 1
36 过渡接头 Connection fitting W42000268 S1CO9-22-08OG 1
37 过渡接头 Connection fitting W42000225 S1CO9-36-12OG 1
扎带 Clip W370000370A PLB4H-TLO 1
