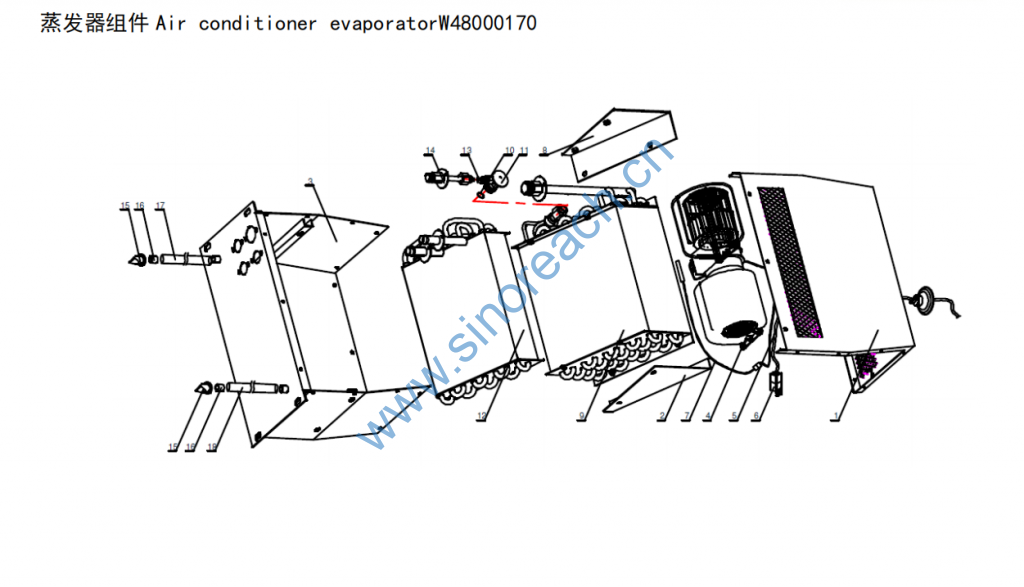

蒸发器组件 Air conditioner evaporator W48000170

1 上盖总成 Cover ASSY 1
2 右固定板组件 Right fixing plate 1
3 下壳总成 The lower shell assembly 1
4 蒸发风机 Evaporator fan W48000331 TB5103 1
5 蒸发器线束总成 Evaporator harness assembly W48000332 GKZ41-5.0T-40 1
6 蒸发器继电器 Evaporator relay W48000333 TB6309 1
7 蒸发器感温探头 Evaporator probe W48000334 TB6504 1
8 左固定板组件 The left fixing plate 1
9 制冷器芯总成 Cooler core assembly W48000335 GKZ41-5.0T-60-20 1
10 O 型圈 O ring W48000336 10.82×1.78 1
11 膨胀阀 Expansion valve W48003012 TB0015 1
12 蒸发器制热器 Evaporator heat exchanger W48000337 GKZ41-5.0T-70 1
13 O 型圈 O ring W48000338 7.65×1.78 1
14 进液管组件+2160 The liquid inlet tube W48000339 GKZ41-5.0T-60-10 1
15 唇形阀 Lip valve W48000340 T0014-2 2
16 连接管 Connecting pipe W48000341 GKZ33-5.0F-08

17 水管 Water pipe W48000342 T2005-800 1
18 水管 Water pipe W48000343 T2005-1300
