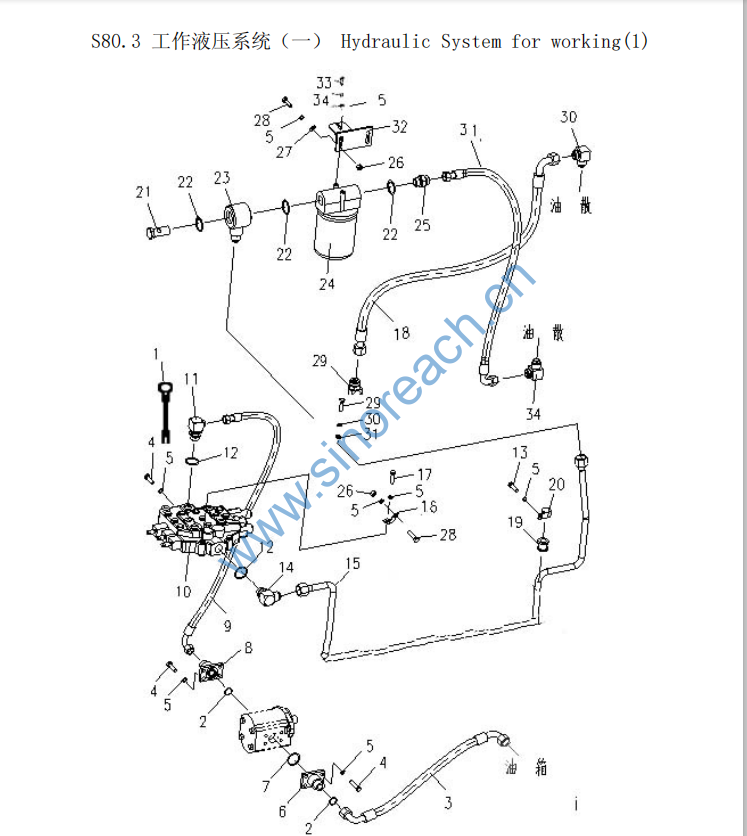

S80.3 工作液压系统（一） Hydraulic System for working(1)

1 S80.3.19 1 线圈拉扣 Line 1
2 B-Q020710-00060 1 O形圈 38×3.5 O-ring 1
3 W-16-01004 1 软管总成|F481CFCF353520-1580(V180) Hose ass’y 1
4 B-G057830-00010 1 螺栓M10x30ZnD Bolt 10
5 B-G000930-00001 1 垫圈10 Washer 15
6 S80.3.38 1 接头 Joint body 1
7 B-Q020710-00070 1 O形圈 45×3.5 O-ring 1
8 S80.3.45 1 接头 Joint body 1
9 W-16-00778 1 软管总成|F381CACE151810-1040 Hose ass’y 1
10 W-07-00161 1 多路阀 AX30220-2 Multi-way valve 1
11 S80.3.12 1 接头 Joint body 1
12 W-15-00004 1 ORAR00912(23.47×2.95) O-ring 2
13 B-G057830-00003 1 螺栓M10x20ZnD Bolt 1
14 S80.3.13 1 接头 Joint body 1
15 W-16-01030 1 软管总成|F481CACF22212-1650 Hose ass’y 1
16 S80.3-26 1 支架 Bracket 1
17 B-G057830-00021 1 螺栓M10x65 Bolt 1
18 W-16-01041 1 软管总成|F481CACA222212-710 Hose ass’y
19 S80.3-19 1 橡胶圈 Rubber ring 1
20 S80.3-18 1 卡子 Clip 1
21 S80.3-15 1 铰接螺栓 Bolt 1
22 B-J010020-00010 1 垫圈 30 Washer 3
23 S80.3.18 1 接头 Joint body 1
24 W-15-00436 1 滤油器YL-82A15030M Oil filter 1
25 S80.3-16 1 接头体 Joint body 1
26 B-G061700-00003 1 螺母M10ZnD Nut 3
27 B-G00097B-00002 1 垫圈 10 Washer 2
28 B-G057830-00012 1 螺栓M10x35ZnD Bolt 3
29 S80.3-8 1 接头体 Joint body 1
30 S80.3-17 1 接头体 Joint body 2
31 W-16-01042 1 软管总成|F481CACA222212-910 Hose ass’y 1
32 S80.3.47 1 支架 Bracket 1
33 B-G057820-00016 1 螺栓M10×55ZnD Bolt 4
34 S80.3-44 1 套 Sleeve 4
