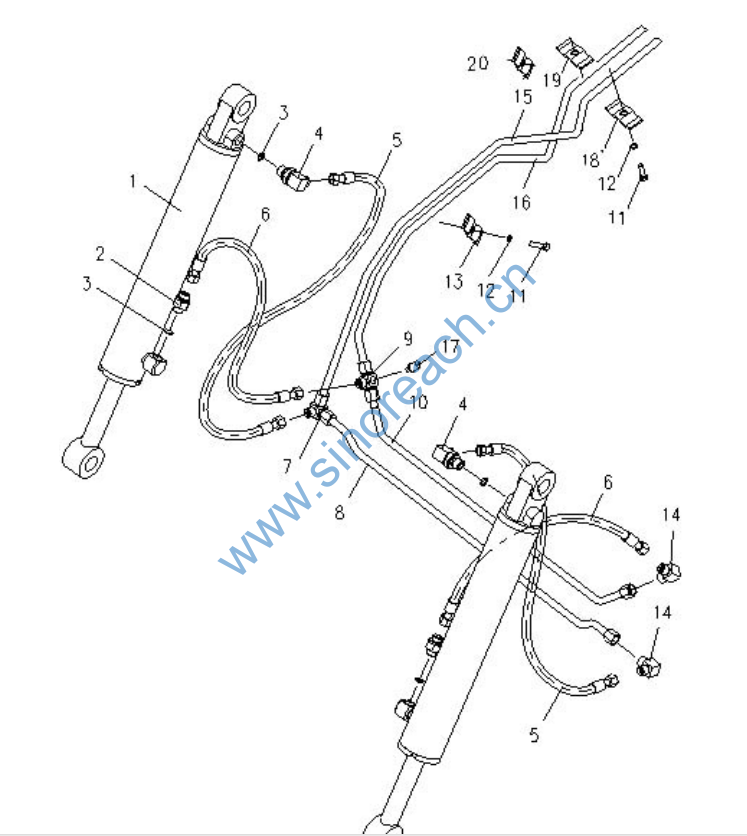

S80.3 工作液压系统（三） Hydraulic System for working(2)

1 S80.3.1 1 翻斗油缸 Tipping Bucket Cylinder 2
2 S80.3-1 1 接头 Joint body 2
3 W-15-00338 1 O型圈 17.4×2.1 O-ring 4
4 S80.3.2 1 接头 Joint body 2
5 W-16-00780 1 软管总成|F481CACA121206-360-PS Hose ass’y 2
6 W-16-00781 1 软管总成|F481CACA121206-460-PS Hose ass’y 2
7 S80.3-3 1 Y型三通接头体 Y Joint body 1
8 S80.3.40 1 油管 Oil tube 1
9 S80.3-2 1 三通接头体 T Joint body 1
10 S80.3.39 1 油管 Oil tube 1
11 B-G057830-00003 1 螺栓M10x20ZnD Bolt 5
12 B-G000930-00001 1 垫圈10 Washer 5
13 S80.3-5 1 管夹 Clamp 5
14 S80.3-33 1 接头 Joint body 2
15 S80.3.3 1 油管 Oil tube 1
16 S80.3.4 1 油管 Oil tube 1
17 W-15-00012 1 测压接头 CSHM14×1.5/WD Tested Joint 1
18 S80.3-47 1 管夹 Clamp 1
19 S80.3-45 1 管夹 Clamp 1
20 S80.3-46 1 板 Plant 1
