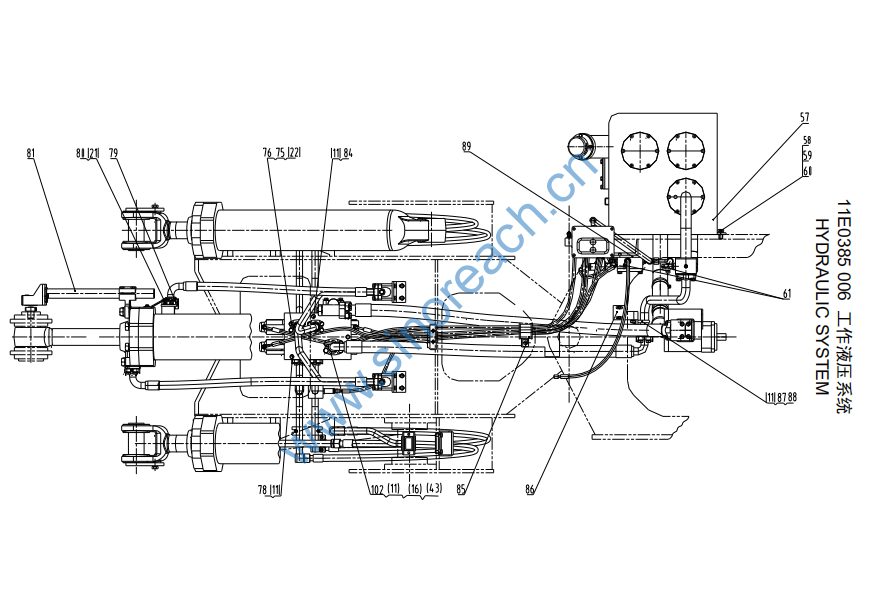

CLG856I 11E0385 006 工作液压系统 HYDRAULIC SYSTEM

1 10C0023 001 动臂油缸 BOOM CYLINDER 2 Z
2 56A0050 002 垫套 BUSHING 2
3 00B0016 000 螺栓 BOLT 2
4 10B0014 000 油杯 GREASE FITTING 2
5 11D0012 001 销轴总成 PIN AS 2
6 12C0025 000 分配阀 DISTRIBUTING VALVE 1 Z
7 30C0016 000 接头 CONNECTOR 7
8 10D0751 000 钢管总成 PIPE AS 1
9 10D0752 000 钢管总成 PIPE AS 1
10 00B0033 000 螺栓 BOLT 12
11 06B0008 000 垫圈 WASHER 49
12 10D0042 000 接管 PIPE 1
13 12B0287 000 O 形圈 O-RING 14
14 10C0024 001 转斗油缸 TILTING CYLINDER 1 Z
15 72A0010 002 压板 SPLIT FLANGE 4
16 00B0035 000 螺栓 BOLT 20
17 07C0037 002 软管总成 HOSE AS 1
18 07C0043 002 软管总成 HOSE AS 1
19 04A1573 000 法兰 FLANGE 1
20 27A0046 000 管夹 CLAMP 4
21 00B0012 000 螺栓 BOLT 12
22 06B0002 000 垫圈 WASHER 40
23 10D0162 000 钢管总成 PIPE AS 2
25 15D0047 000 钢管总成 PIPE AS 1
26 15D0048 000 钢管总成 PIPE AS 1
27 09C0857 000 管夹 CLAMP 1
29 12B0285 000 O 形圈 O-RING 2
30 05C1572 000 软管总成 HOSE AS 3
31 12C0019 000 先导阀 VALVE GP-PILOT 1 Z
32 23C0037 001 操纵手柄总成 CONTROL LEVER AS 1 Z
33 05C0278 001 软管总成 HOSE AS 1
34 05C0154 000 软管总成 HOSE AS 2
35 06C0090 000 软管总成 HOSE AS 1
36 31C0031 000 直角接头 CONNECTOR 3 Z
37 30C0028 000 接头 CONNECTOR 1 Z
38 30C0007 000 接头 CONNECTOR 1
39 33C0001 000 四通接头 CONNECTOR 1 Z
40 72A0041 000 压板 SPLIT FLANGE 4
41 00B0025 000 螺栓 BOLT 16
42 06B0013 000 垫圈 WASHER 16

43 12B0302 000 O 形圈 O-RING 6
44 10D0158 000 回油钢管总成 PIPE 1
45 06C0091 002 软管总成 HOSE AS 1
46 01B0158 000 螺栓 BOLT 4
47 72A0090 000 接头 CONNECTOR 1
48 11C0015 000 齿轮泵 GEAR PUMP 1 Z
49 80A0010 001 密封垫片 GASKET 1
50 32C0025 000 接头 CONNECTOR 1 Z
51 12B0291 000 O 形密封圈 O-RING 1
52 10D0159 000 工作泵吸油管 SUCTION TUBE 1
53 12B0024 000 O 形圈 O-RING 1
54 01B0142 000 螺栓 BOLT 8
55 15B0102 000 双钢丝式环箍 CLAMP 2
56 30A0033 000 吸油软管 SUCTION HOSE 1
57 21C0208 000 液压油箱 HYDRAULIC OIL TANK 1 Z
58 00B0014 000 螺栓 BOLT 6
59 06B0015 000 垫圈 WASHER 6
60 06B0012 000 垫圈 WASHER 6
61 05A0044 000 螺盖 CAP 1
62 33C0023 000 四通接头 CONNECTOR 1 Z
63 12B0370 000 O 形圈 O-RING 2
64 31C0022 000 可调接头 CONNECTOR 1 Z
65 12C0037 004 组合阀 COMBINATION VALVE 1 Z
66 00B0011 000 螺栓 BOLT 4
67 06C0192 001 软管总成 HOSE AS 1
68 07C0046 000 回油软管总成 HOSE 1
69 07C2434 软管总成 HOSE AS 1
70 06C0088 001 软管总成 HOSE AS 4
71 12B0292 000 O 形圈 O-RING 8
72 12C0057 000 单向阀 CHECK VALVE 1 Z
73 10D0171 000 钢管总成 PIPE AS 1
74 10D0172 000 钢管总成 PIPE AS 1
75 00B0002 000 螺栓 BOLT 16
76 72A0035 000 压板 SPLIT FLANGE 4
77 30C0015 000 接头 CONNECTOR 1 Z
78 01B0122 000 螺栓 BOLT 2
79 23A0107 000 连接板 PLATE 1
80 06B0001 000 垫圈 WASHER 4
81 00C1079 000 自动复位系统 POSITIONER AND
KICKOUT SYSTEM 1 Z
82 35C0003 001 密封圈 SEAL RING 4

83 35C0012 001 密封圈 SEAL 4
84 01B0206 000 螺栓 BOLT 1
85 09C0080 000 管夹 CLAMP 1
86 23A0388 000 固定板 PLATE 1
87 02B0020 000 U 型螺栓 U-BOLT 1
88 03B0003 000 螺母 NUT 2
89 50D0067 000 板 PLATE 1
90 00B0018 000 螺栓 BOLT 8
91 03B0093 002 螺塞 PLUG 2
92 12B0351 000 O 形密封圈 O-RING 3
93 00A0256 000 接头 CONNECTOR 3
94 23A1661 000 连接板 PLATE 1
95 12C0045 000 电磁阀 SOLENOID VALVE 1
96 05C0279 000 软管总成 HOSE AS 1
97 00C0632 000 先导油滤管路 PILOT OIL FILTER
LINES 1 Z
98 12B0284 000 O 形圈 O-RING 7
99 06B0006 000 垫圈 WASHER 4
100 00B0075 000 螺栓 BOLT 4
101 05A0100 000 螺塞 PLUG 1
102 72A0003 000 压板 SPLIT FLANGE 1
