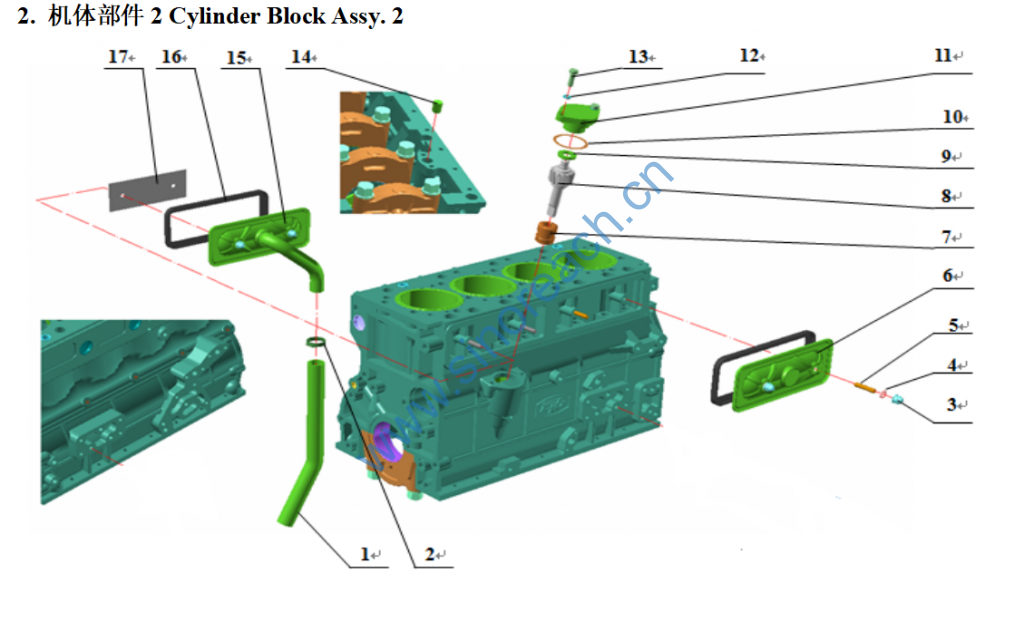

机体部件2 Cylinder Block Assy. 2

标号
Item 物料编码 零件代号
Part No 零件名称 Part Name 规格/型号
Specs or Model 数量
Q’ty 备注
Remarks

1. HA019301 4102QB-01.07-001 呼吸管接管 Breather joint pipe 1
2. ZBJ15001-87 喉箍 Clamp NO.1X 1
3. HA01370 4100QB-01-068 侧盖板螺母 Side board nut 4
4. 青岛基珀 组合垫圈 Combination washer 8 4
5. HB047 GB898-88 螺柱 Bolt AM8×30 4
6. HA01670 4102QB-01-056 前上侧盖板 Front upper side cove 1
7. HA014 495QA-01-023 机油泵传动轴衬套 Bush, oil pump driving shaft 1
8. 4100QB-01.03D-011 传动齿轮轴 Propeller gear shaft 1
9. HA01192 495QA-01.03-001 调整垫片 Adjusting washer 1
10. HA01836 4100QB-01-024A 机油泵上轴套盖垫片 Gasket 1
11. HA015 4100QB-01-025A 机油泵上轴套盖 Cover 1
12. GB93-1987 垫圈 Sping washer 8 2
13. GB/T 5783-2000 螺栓 Bolt M8×25 2
14. HA01124 4100QB-01-018 堵塞 plug ф15 1
15. HA0186 4100QBZL-01.07 后上侧盖板焊合件 Welded rear upper side cover 1
16. HA01322 4100QB-01-057 上侧盖板垫片 Upper side cover washer 2
17. HA01226 495QA-01-055 挡油板 Oil-retaining ring 1
