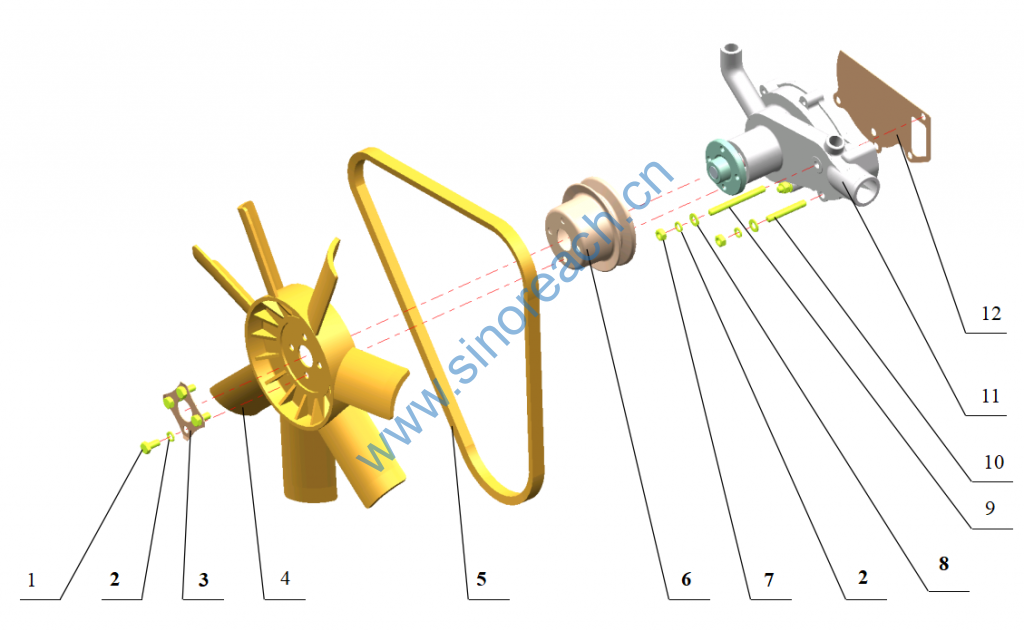

风扇、水泵部件 Fan and water pump Assy

1.  GB/T 5783-2000 螺栓 Bolt M8×16 4
2.  GB93-1987 垫圈 Sping washer 8 8
3.  HA0630 4100QB-06-001 锁紧垫片 Lock shim 1
4.  HA06767 Z490-28-7 七叶塑料风扇 7 leaf plastic Fan assy 1
5.  HA3012 风扇带 Fan belt AV17×1065Li 1
6.  HA19710 4100QB-19-002-FTZ 水泵皮带轮 Water pump belt pulley 1
7.  GB/T 6170-2000 螺母 Nut M8 4
8.  GB/T 97.1-2002 垫圈 Washer 8 4
9.  GB898-88 螺柱 Bolt AM8×45 3
10.  GB898-88 螺柱 Bolt AM8×70 1
11.  HA06804 YN33-06.01 水泵总成 Water pump assy 1
12.  HA0640 4100QB-06-011A 水泵垫片 Water pump washer 1
