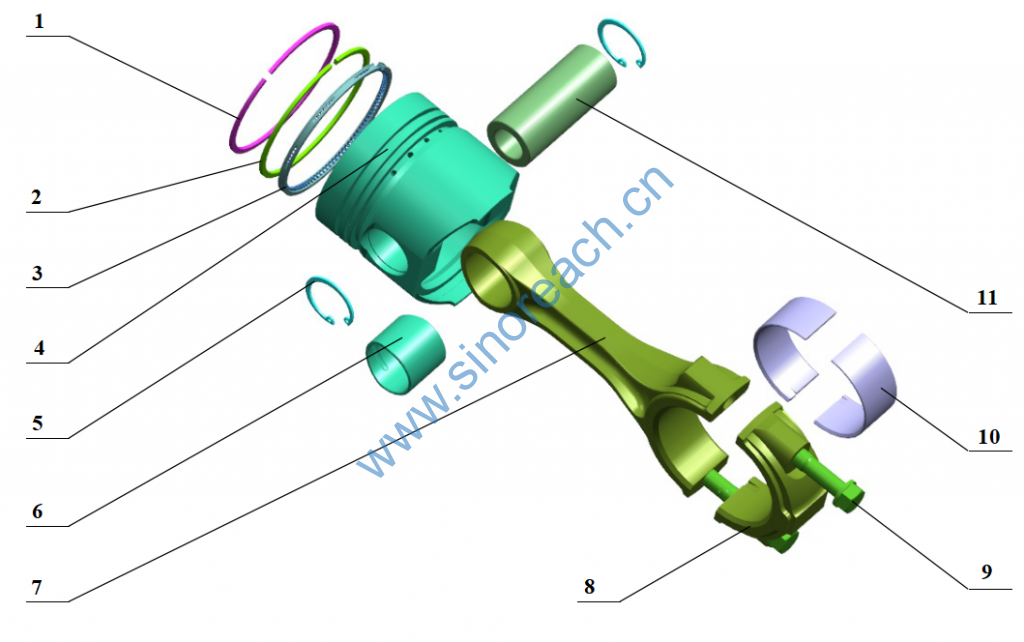

活塞连杆总成Piston conrod Assy.

1.  HA04050 4100QB-2-04-002 第一道气环 Top Compression ring 4
(套件)
2.  4100QB-2-04-003 第二道气环 No.2 compression ring 4
3.  4100QB-2-04.01 油环合件 Oil scraping ring seaming 4
4.  HA0478 4100QB-2-04-001-FQ 活塞 Piston 4
5.  HB071 GB893.1-1986 挡圈 Retainer ring 35 8
6.  4102QBZL-04.02-004 连杆衬套 Connecting rod bush 4
7.  HA04047 4102QBZL-04.02-001 连杆体 Connecting rod 4
8.  HA04047 4100QBZ-2-04.02-002A 连杆盖 Connecting rod cover 4
9.  4100QBZ-2-04.02-003A 连杆螺栓 Connecting rod bolt 8
10.  HA04035 4102QBZL-04-006 连杆轴瓦 Connecting rod liner 8
11.  HA0419 4100QB-04-005 活塞销 Piston pin 1
