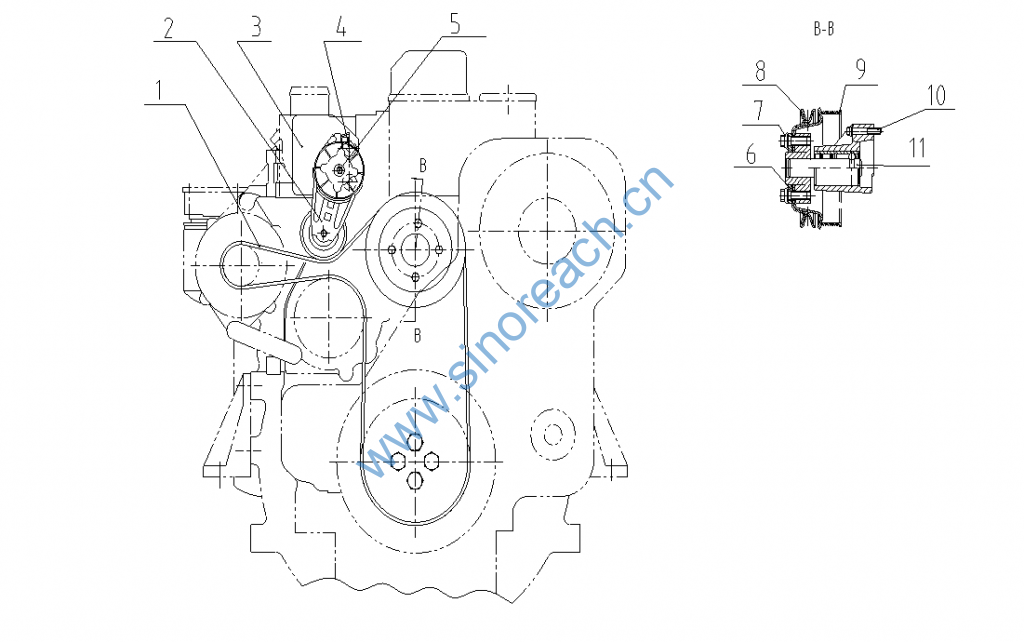

D16A-000-43 前端驱动机构组件 FRONT GEAR SYSTEM GROUP

1 D16A-106-05 FAN BELT 1
2 D16A-003-03 TENSIONER ASSY 1
3 D16A-121-45 TENSIONER PLATE 1
4 B00000631 HEXAGON HEAD BOLT 2 GB/T5783-M820 5 B00002031 HEXAGON BOLTS 1 Q/SC622-M1080-10.9
6 D16A-111-01A CLAMP 1
7 B00002050 HEXAGON BOLTS 4 Q/SC622-M1230 8 D16A-136-01 PULLEY 1 9 D16A-107-14 PULLEY, FAN 1 10 B00002147 HEX HEAD BOLT 4 Q/SC622-M845
11 D16A-010-01A BEARING HOUSING 1
