D22-000-38 调温器组件 THERMOSTAT GROUP

SINOREACH GROUP CO., LIMITED Posted on by

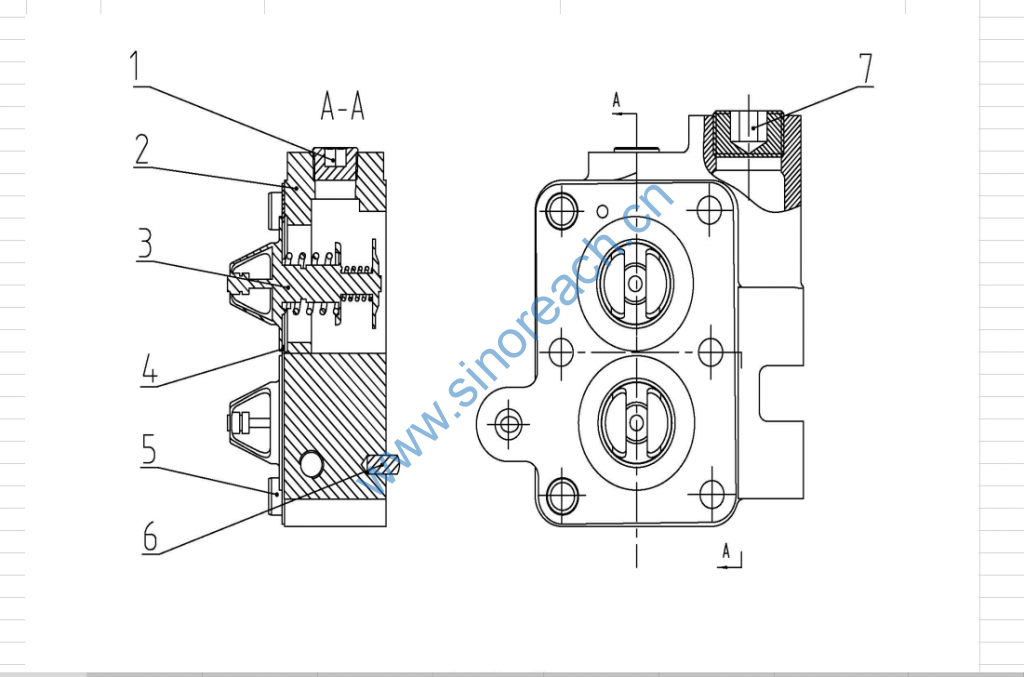

D22-000-38 调温器组件 THERMOSTAT GROUP

1 D04-309-01 内六角螺塞(Z3/8) HEXAGON COUNTERSUNK PIPE PLUG 1
2 D22-101-38 调温器体 THERMOSTAT HOUSING 1
3 D22-102-04 调温器 THERMOSTAT ASSY 2
4 D22-103-33 垫片 GASKET 1
5 D22-105-01 套筒销 ELASTIC PIN 2
6 B00000121 圆柱销 DOWEL,PIN 2 GB/T119-A6*12
7 D02A-163-01 内六角螺塞(Z3/4) HEXAGON COUNTERSUNK PIPE PLUG 1
