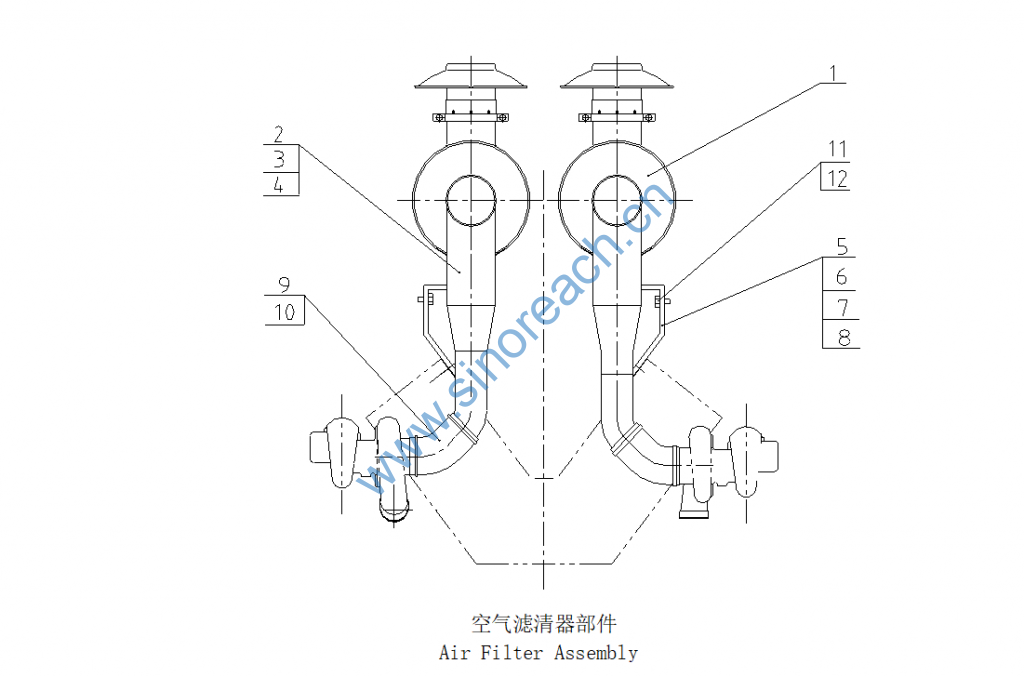

空气滤清器部件 AIR FILTER ASSEMBLY S00003539+02

1 空气预滤器 AIR FILTER S00000687+01 1

空气滤清器部件 AIR FILTER S00000688+02 1

2 左增压器进气管 LEFT SUPERCHARGER INTAKE PIPE 774JZ-14-004+A 1

右增压器进气管 RIGHT SUPERCHARGER INTAKE PIPE 774JZ-14-004+A 1

3 Q/SC646-127*80：橡胶水管 HOSE B00002295 2

4 Q/SC1302-143~165 ： 喉箍 HOOP B00001562 4

5 支架 BRACKET 774JZ-14-003+A 2

6 GB/T93-10 ：弹簧垫圈 STANDARD SPRING WASHER B00001237 8

7 GB/T5783-M10*30：六角头螺栓 HEXAGON HEAD BOLT  B00002001 8

8 Q/SC611.1-M8*25：小六角头螺栓 SMALL HEXAGON HEAD BOLT B00002137 8

11 Q/SC611.1-M8*22：小六角头螺栓 SMALL HEXAGON HEAD BOLT B00001964 4

12 Q/SC1302-78~101：喉箍 STANDARD SPRING WASHER B00001583 4
