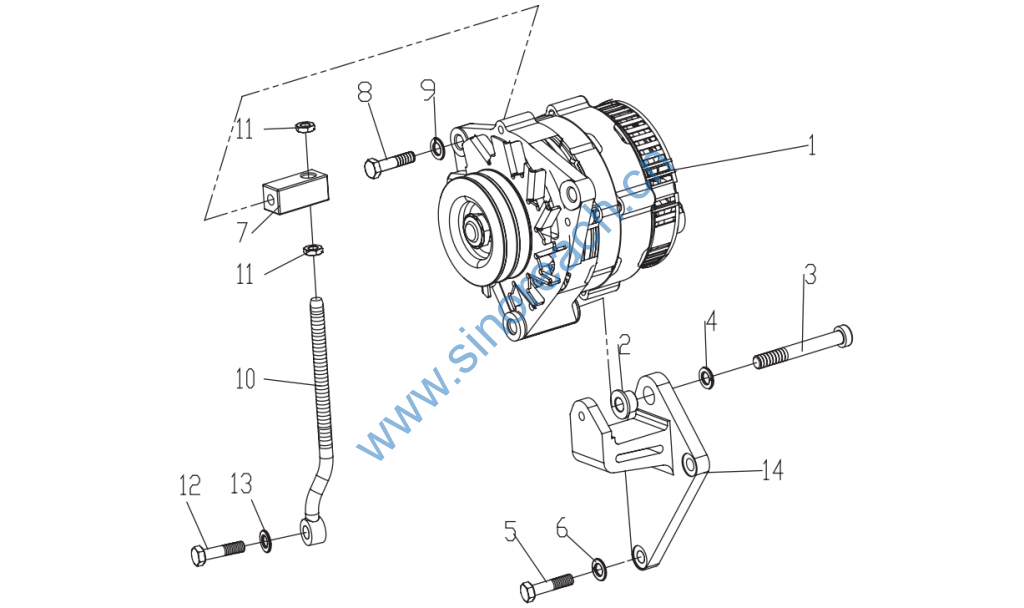

26B/WP6 Series Diesel Engine Parts ALTERNATOR AND BRACKET ASSEMBLY

1 13024345 1 — 发电机组件 ALTERNATOR ASSEMBLY
2 13024352 1 1 套筒 SLEEVE
3 13024577 1 1 Q218B1080 内六角圆柱头螺钉 CHEESE HEAD SCREW
4 1177981 1 1 Q40310 弹簧垫圈 SPRING LOCK WASHER
5 1112331 1 1 Q150B0835 六角头螺栓 HEXAGON BOLT
6 1177981 1 1 Q40308 弹簧垫圈 SPRING LOCK WASHER
7 13032791 1 1 涨紧螺栓用支架 BRACKET
8 1139338 1 1 M10*35-12.9GB5782 六角头螺栓 HEXAGON BOLT
9 1152752 1 1 Q40110 平垫圈 PLAIN WASHER
10 13025986 1 1 发电机拉紧螺栓 STRAIN
11 13022243 2 2 六角螺母 HEXAGON NUT
12 13025013 1 1 Q150B1030 六角头螺栓 HEXAGON BOLT
13 13024 1 1 Q40310 弹簧垫圈 SPRING LOCK WASHER
14 13024344 1 1 发电机支架 BRACKET
