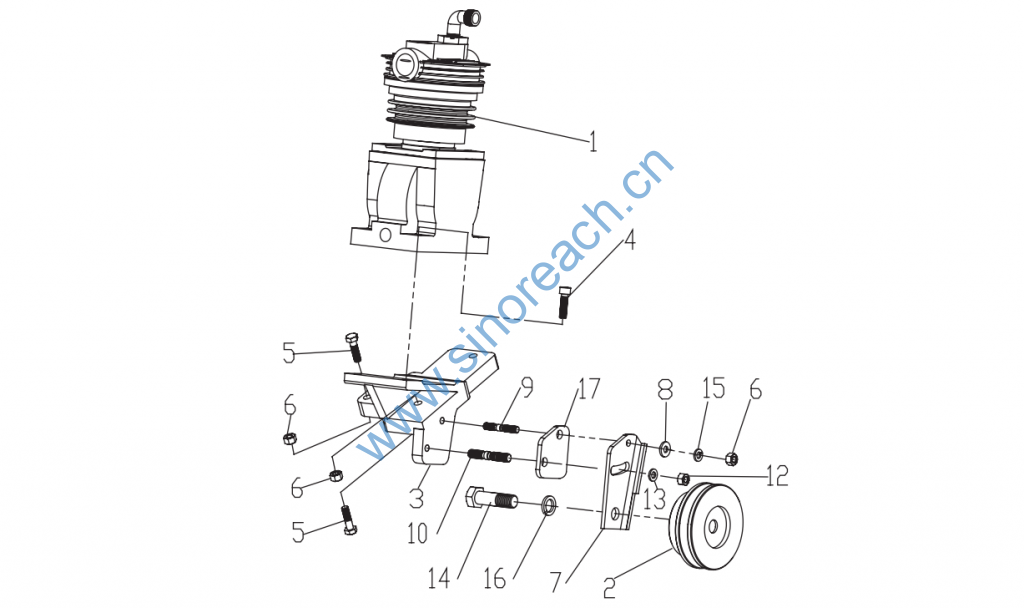

226B/WP6 Series Diesel Engine Parts AIR COMPRESSOR ASSEMBLY

1 13026014 1 1 空压机 AIR COMPRESSOR
2 13031840 1 1 空压机涨紧轮组件 SWELL PRESSING WHEEL
ASSEMBLY
3 13033561 1 1 空压机支架 BRACKET
4 1110665 4 4 Q218B1035 内六角圆柱头螺钉 CHEESE HEAD SCREW
5 1139584 1 1 Q150B0835 六角头螺栓 HEXAGON BOLT
6 1112829 1 1 Q340B08 六角螺母 HEXAGON NUT
7 13020864 1 1 涨紧轮支撑板 SUPPORT BOARD
8 13023198 1 1 垫片 WASHER
9 1113391 1 1 Q1200825 双头螺柱 DOUBLE-BOLT
10 1113472 1 1 Q1201030 双头螺柱 DOUBLE-BOLT
12 1139401 1 1 Q360B10 六角螺母 HEXAGON NUT
13 12166173 1 1 平垫圈 PIAIN WASHER
14 1112682 1 1 M16*40 10.9GB578 六角头螺栓 HEXAGON BOLT
15 1177981 1 1 Q40308 弹簧垫圈 SPRING LOCK WASHER
16 1022681 1 1 Q40316 弹簧垫圈 SPRING LOCK WASHER
17 13021663 1 1 垫板 UNDERLAY BOARD
