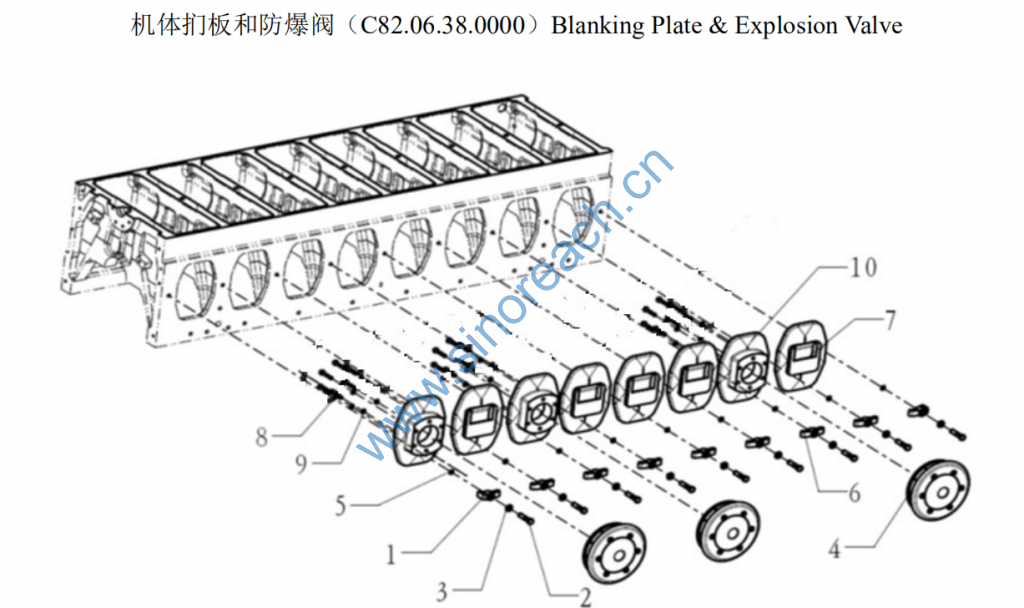

C82.06.38.0000 Blanking Plate & Explosion Valve

1 C62.06.04.0001 边压板 Side plate 2 2
2 90031160059 六角头螺栓 Hex. head bolt 9 9 GB/T5782-M16×70
3 90034050009 平垫圈 Plain washer 9 9 GB/T97.1-16
4 C62.06.38.1000 阻燃式防爆阀 Crankcase safety
valve ass. 3 3
5 90034590003 轴用弹性挡圈 Circlip for shaft 9 9 GB/T894.1-16
6 C62.06.04.0002 中压板 Center plate 7 7
7 620006380022 机体扪板 Blank plate 5 5
8 90031210001 六角法兰面螺栓 Hex. flange bolt 18 18 GB/T5789-M10×62
9 DIN7603-A10×20 密封垫圈 Sealing washer 18 18
10 620006380023 防爆阀安装板 Installation plate 3 3
