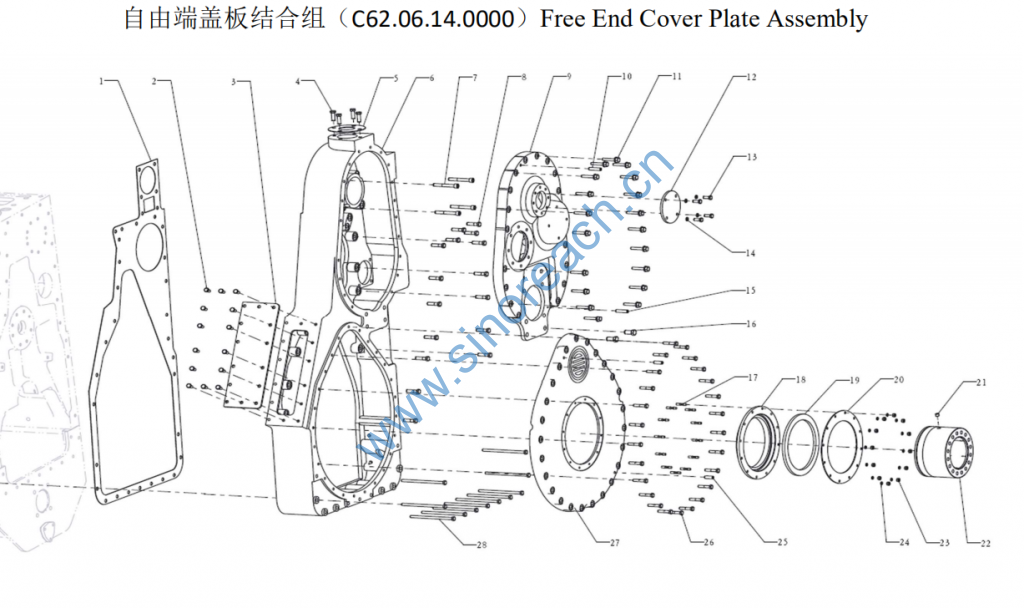

C62.06.14.0000 Free End Cover Plate Assembly

1 C62.06.02.0007 垫片 Gasket 1 1 1 1
2 90011350026 螺栓 Bolt 14 14 14 14 GB/T5783-M10×20
3 C62.06.02.0008 盖板 Plate 1 1 1 1
4 90031170045 螺栓 Bolt 4 4 4 4 GB/T5783-M12×35
5 C62.06.02.0010 垫片 Gasket 1 1 1 1
6 C62.06.02.0003 箱体 Casing 1 1 1 1
7 90033040039 内六角头螺
栓
Hex. socket cap
screw
4 4 4 4 GB/T70.1-M12×90
8 90031170050 螺栓 Bolt 16 16 16 16 GB/T5782-M12×45
9 C62.06.30.0001 盖 Cover 1 1 1 1
10 BG/T120.2-12×50-A 内螺纹圆柱
销
Cylindrical pin
with internal 1 1 1 1
11 90031210006 六角法兰面
螺栓
Hex. head flange
bolt 24 24 24 24 GB/T5789-M10×55s
12 C62.06.02.0001 盖 Cover 1 1 1 1
13 90003802523 螺栓 Bolt 4 4 4 4 GB/T5783-M10×25
14 90014010001 弹簧垫圈 Spring washer 4 4 4 4 GB/T93-10

15 90035070005 内螺纹圆柱销 Cylindrical pin 1 1 1 1 GB/T120.2-12×28-A
16 90031170061 螺栓 Bolt 2 2 2 2 GB/T5783-M16×30
17 90003813443 双头螺柱 Stud bolt 12 12 12 12 Q1200830F3
18 C62.06.32.0002 迷宫环 Labyrinth ring 1 1 1 1
19 90037730002 油封 Oil seal 1 1 1 1 DIN3760-A250×280
×15-NB
20 C62.06.32.0003 挡圈 Check ring 1 1 1 1
21 M564-G1/4 螺塞 Screw plug 1 1 1 1
22 C62.06.32.0004 联接法兰 Coupling flange 1 1 1 1
23 90012210022 六角螺母 Hexagonal nut 12 12 12 12 GB/T6170-M8
24 90014010013 弹簧垫圈 Spring washer 12 12 12 12 GB/T93-8
25 90035070004 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-10×45
26 90003800543 螺栓 Bolt 25 25 25 25 GB/T5782-M10×50
27 C62.06.02.0002 自由端盖板 Free end cover plate 1 1 1 1
28 90031160049 螺栓 Bolt 12 12 12 12 GB/T5782-M12×180
