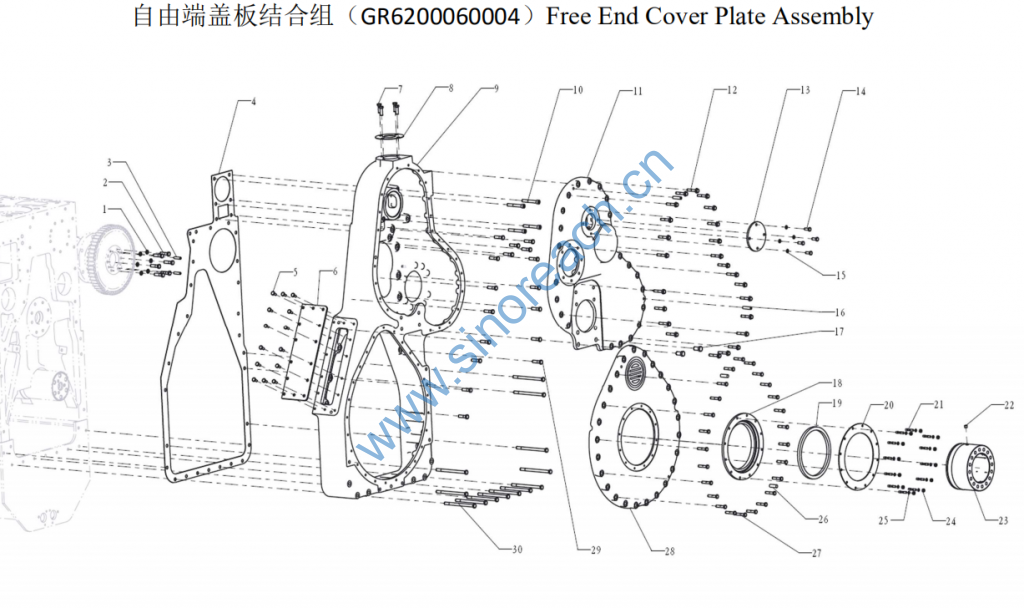

GR6200060004 Free End Cover Plate Assembly

1 90014010002 弹簧垫圈 Spring washer 6 6 6 6 GB/T93-12
2 90031170050 螺栓 Bolt 6 6 6 6 GB/T5782-M12×45
3 90035070003 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-10×32
4 C62.06.02.0007 垫片 Gasket 1 1 1 1
5 90011350026 螺栓 Bolt 14 14 14 14 GB/T5783-M10×20
6 C62.06.02.0008 盖板 Plate 1 1 1 1
7 90031170045 螺栓 Bolt 4 4 4 4 GB/T5783-M12×35s
8 C62.06.02.0010 垫片 Gasket 1 1 1 1
9 C62.06.02.0003 箱体 Casing 1 1 1 1
10 90033040039 内六角头螺栓 Hex. socket cap screw 4 4 4 4 GB/T70.1-M12×90
11 C62.06.02.0005 盖 Cover 1 1 1 1
12 90031210006 六角法兰面螺
栓
Hex. head flange bolt 24 24 24 24 GB/T5789-M10×55s
13 C62.06.02.0001 盖 Cover 1 1 1 1
14 90003802523 螺栓 Bolt 4 4 4 4 GB/T5783-M10×25
15 90014010001 弹簧垫圈 Spring washer 4 4 4 4 GB/T93-10

16 90035070008 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-12×50
17 90031170061 螺栓 Bolt 2 2 2 2 GB/T5783-M16×30
18 C62.06.32.0002 迷宫环 Labyrinth ring 1 1 1 1
19 90037730002 油封 Oil seal 1 1 1 1 DIN3760-A250×280
×15-NB
20 C62.06.32.0003 挡圈 Check ring 1 1 1 1
21 90003813443 双头螺柱 Stud bolt 12 12 12 12 Q1200830F3
22 M564-G1/4 螺塞 Screw plug 1 1 1 1
23 C62.06.32.0004 联接法兰 Coupling flange 1 1 1 1
24 90012210022 六角螺母 Hex. nut 12 12 12 12 GB/T6170-M8
25 90014010013 弹簧垫圈 Spring washer 12 12 12 12 GB/T93-8
26 90035070004 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-10×45
27 90003800543 螺栓 Bolt 25 25 25 25 GB/T5782-M10×50
28 C62.06.02.0002S 自由端盖板 Free end cover plate 1 1 1 1
29 90031170050 螺栓 Bolt 16 16 16 16 GB/T5782-M12×45
30 90031160049 螺栓 Bolt 12 12 12 12 GB/T5782-M12×180
