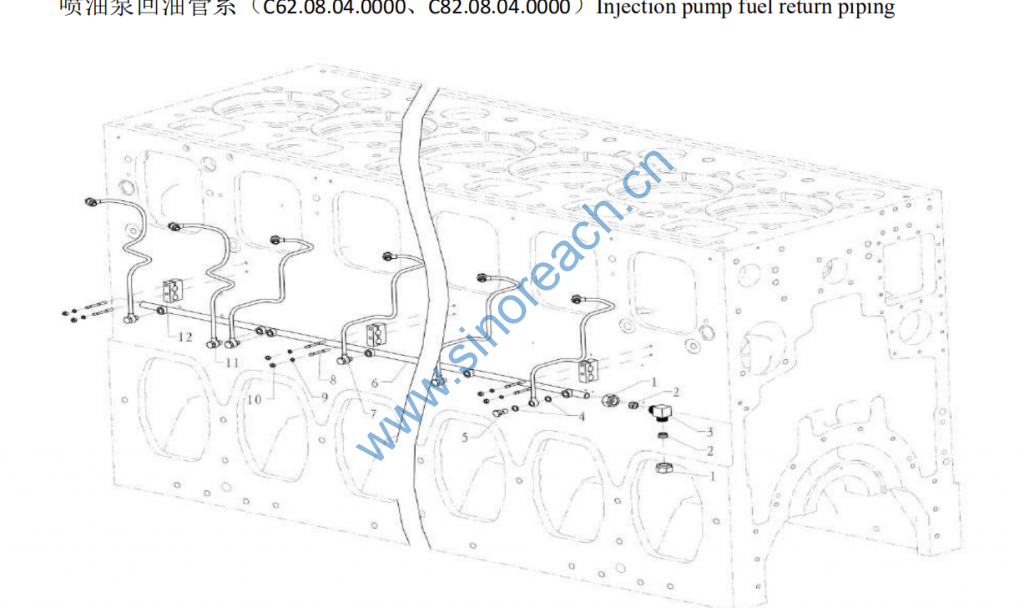

C62.08.04.0000、C82.08.04.0000 Injection pump fuel return piping

1 DIN3870-AL16 连接螺母 Connecting nut 2 2 2 2
2 DIN3861-L16 卡套 Sleeve chuck 2 2 2 2
3 DIN3905-L16 直角接头体 Right-angle coupling
body 1 1 1 1
4 DIN7603-A12×16 密封垫圈 Sealing washer 24 24 32 32
5 DIN7643-LL8 空心螺钉 Hollow screw 12 12 16 16
6 C82.08.04.1100 喷油泵回油管
结合组
Injection pump fuel
return pipe assembly 4 4 6 6
7 C62.08.04.3000 回油管结合组 Fuel return pipe
assembly 1 1 1 1
8 90031520001 双头螺柱 Stud bolt 6 6 8 8 GB/T898-M6×45
9 90014350003 弹簧垫圈 Spring washer 6 6 8 8 GB/T93-6
10 90012210020 六角螺母 Hexagonal nut 6 6 8 8 GB/T6170-M6
11 C82.08.04.2100 回油管结合组 Injection pump fuel
return pipe 2 2 2 2
12 C82.08.04.4000 管夹组件 Pipe clip assembly 3 3 4 4
