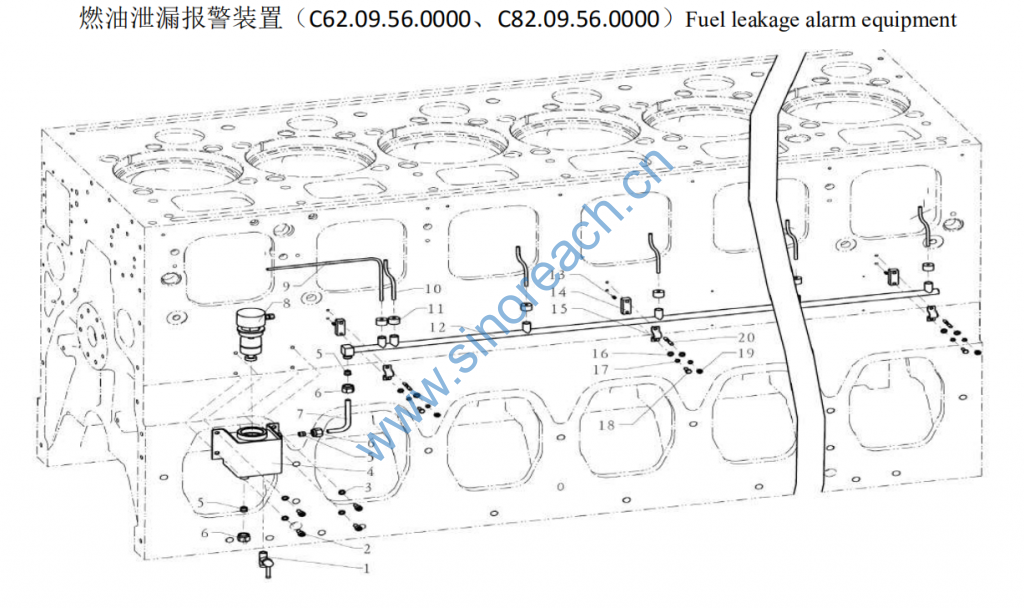

C62.09.56.0000、C82.09.56.0000 Fuel leakage alarm equipment

1 C62.15.24.0002 球型截止阀 Ball shutoff valve 1 1 1 1
2 90003862419 内六角螺钉 Hex. socket cap
screw
4 1 4 1 GB/T70.1-M8×16
3 90034180003 弹簧垫圈 Spring washer 4 1 4 1 GB/T859-8
4 C62.09.56.2000 浮子油箱 Bobber tank 1 1 1 1
5 DIN3861-AL10 卡套 Sleeve chuck 3 3 3 3
6 DIN3870-AL10 连接螺母 Connecting nut 3 3 3 3
7 C62.09.56.0001 连接管 Connecting tube 1 1 1 1
8 C62.09.48.3000 浮子开关 Bobber on-off 1 1 1 1 GB/T5783-M5×35
9 C62.09.09.0002 回油管 Fuel return pipe 1 1 1 1
10 C62.09.29.0001 回油管 Fuel return pipe 5 5 7 7
11 C82.09.09.0003 橡皮套 Rubber sleeve 6 6 7 7 GB/T5783-M6×35
12
C62.09.56.1000 回油管结合组 Fuel return pipe ass. 1 1
C82.09.56.1000 回油管结合组 Fuel return pipe ass. 1 1
13 90033090005 开槽平端紧定螺钉 Slotted set screw 3 3 4 4 GB/T73-M6×8
14 620009280102 板 Plate 3 3 4 4

15 620012060018 管夹 Pipe clip 3 3 4 4
16 90034050003 平垫圈(A 级) Flat washer (A) 6 6 8 8 GB/T97.1-6
17 90014350003 弹簧垫圈 Spring washer 6 6 8 8 GB/T93-6
18 90011270068 六角头螺栓 Hexagonal nut 3 3 4 4 GB/T5783-M6×16
19 90012210020 1 型六角螺母 Hexagonal nut 3 3 4 4 GB/T6170-M6
20 90031540006 双头螺柱 Stud bolt 3 3 4 4 GB/T900-M625
