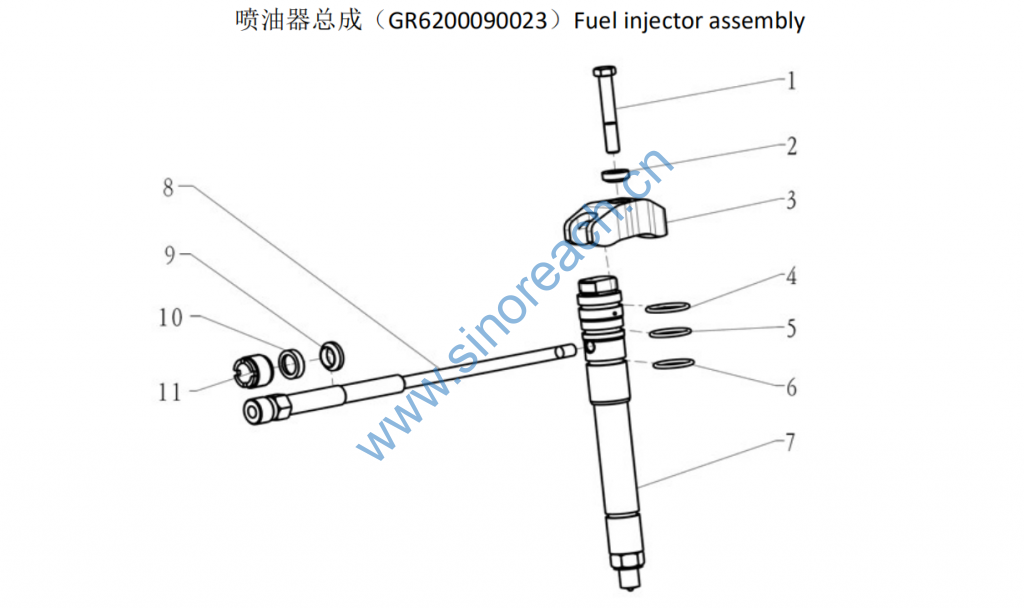

GR6200090023 Fuel injector assembly

1 90031160080 六角头螺栓 Hexagonal head bolt 6 6 8 8 GB/T5782-M12×80-10.9
2 620009010060 球面垫圈 Spherical 6 6 8 8
3 620009010033 喷油器夹紧块 Clamp block of Fuel
injector 6 6 8 8
4 90037680010 O 型密封圈 O-ring 6 6 8 8 JB/T7757.2-34.5×3.55-V
5 90037680009 O 型密封圈 O-ring 6 6 8 8 JB/T7757.2-32.5×3.55-V
6 90037680008 O 型密封圈 O-ring 6 6 8 8 JB/T7757.2-31.5×3.55-V
7 620009230141 喷油器 Injector 6 6 8 8
8 620009010087 套管 Bushing 6 6 8 8
9 620009010088 密封垫圈 Sealing washer 6 6 8 8
10 620009010089 压力环 Pressure ring 6 6 8 8
11 620009010090 螺塞 Screw plug 6 6 8 8
