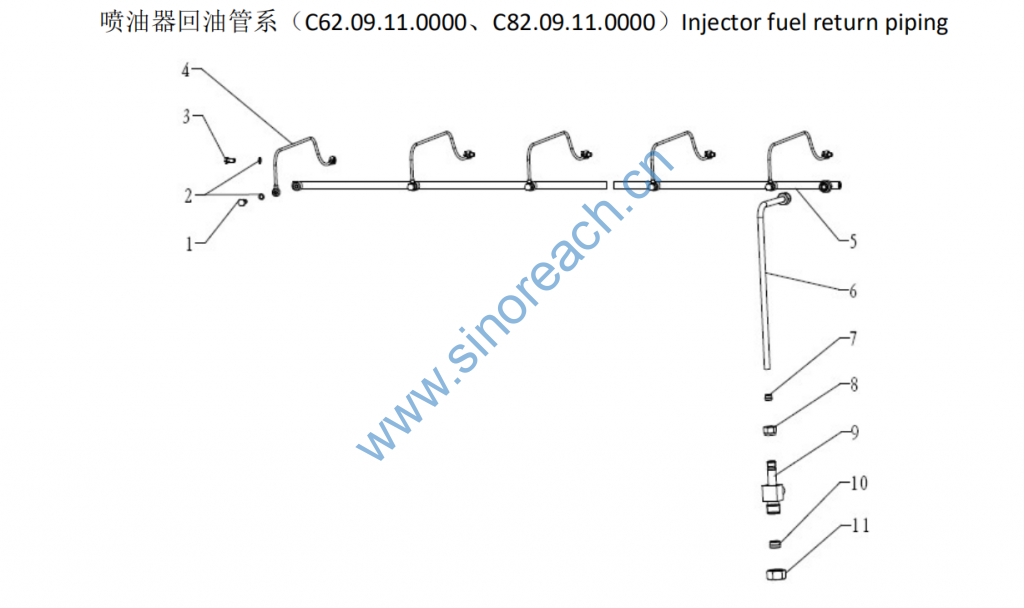

C62.09.11.0000、C82.09.11.0000 Injector fuel return piping

1 DIN7643-LL3 空心螺钉 Hollow screw 6 6 8 8
2 612600080201 密封垫圈 Sealing washer 24 24 32 32
3 C62.09.03.0001 空心螺钉 Hollow screw 6 6 8 8
4 C62.09.03.8000 回油管结合组 Fuel return pipe ass. 6 6 8 8
5
C62.09.11.1000 集油管结合组 Gathering pipe ass. 1 1
C82.09.11.1000 集油管结合组 Gathering pipe ass. 1 1
6 C62.09.11.0001 管 子 Pipe 1 1 1 1
7 90003559563 卡套 Sleeve chuck 2 2 2 2
8 DIN3870-AL12 连接螺母 Connecting nut 2 2 2 2
9 620009110001 接头体 Coupling body 1 1 1 1
10 DIN-3861-L20 卡套 Sleeve chuck 3 3 3 3
11 DIN3870-AL20 连接螺母 Connecting nut 3 3 3 3
12 C62.09.03.0001 空心螺钉 Hollow screw 6 6 8 8
