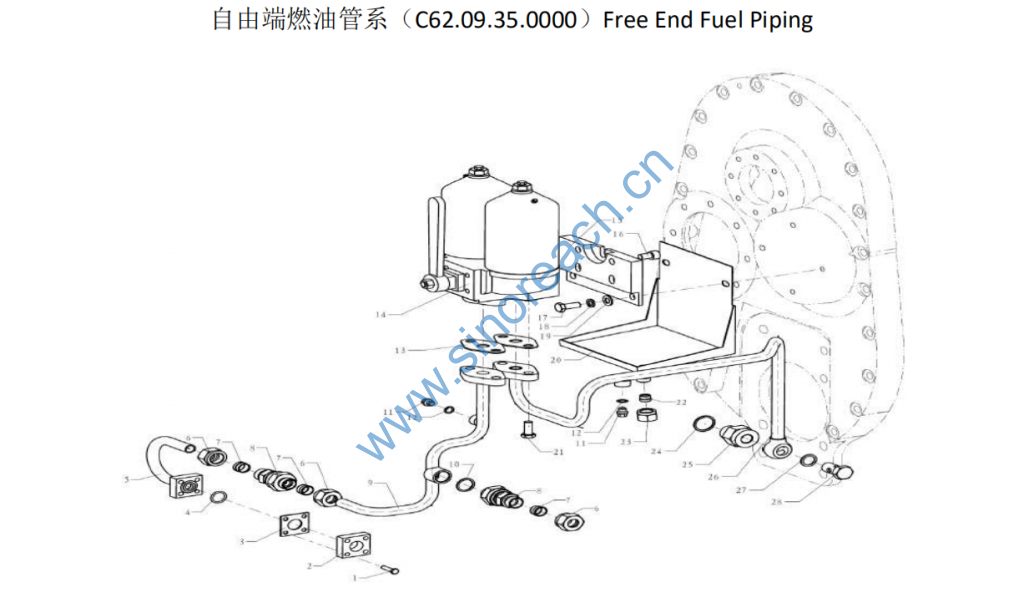

C62.09.35.0000 Free End Fuel Piping

1 90011350060 六角头螺栓 Hex. head bolt 8 8 8 8 GB/T5782-M6×25
2 C62.09.35.0001 法兰 Flange 1 1 1 1
3 C62.09.35.0002 密封垫片 Sealinggasket 1 1 1 1
4 C62.09.35.0003 O 型密封圈 O-ring 1 1 1 1
5 C62.09.35.2000 进油管结合组 Fuel charge pipe ass. 1 1 1 1
6 DIN3870-AL16 连接螺母 Connecting nut 3 3 3 3
7 DIN3861-L16 卡套 Sleeve valve 3 3 3 3
8 C12.09.04.2000 单向阀 One-way valve 2 2 2 2 0.05MPa
9 C62.09.35.3000 进油管结合组 Fuel charge pipe ass. 1 1 1 1
10 DIN7603-A22×27 密封垫圈 Sealing washer 1 1 1 1
11 LS-AM10×1 六角螺塞 Hex. screw plug 2 2 2 2
12 DIN7603-A10×14 密封垫圈 Sealing washer 2 2 2 2
13 C62.09.04.0003 密封垫片 Sealinggasket 2 2 2 2
14 C62.25.04.1000 燃油双筒滤器 Two-barrel fuel filter 1 1 1 1
15 C62.09.21.2001 安装板 Mounting plate 1 1 1 1

16 90033040016 内六角头螺钉 Hex. socket cap screw 4 4 4 4 GB/T70.1-M10×16
17 90003802523 六角头螺栓 Hex.head bolt 3 3 3 3 GB/T5783-M10×25
18 90034180004 轻型弹簧垫圈 Lightened washer 3 3 3 3 GB/T859-10
19 90003930271 平垫圈 Flat washer 3 3 3 3 GB/T97.1-10
20 C62.09.47.2000 接油盘组件 Oil collecting pan asse. 1 1 1 1
21 90003802523 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M10×25
22 DIN3861-L12 卡套 Sleeve chuck 1 1 1 1
23 DIN3870-AL12 连接螺母 Connecting nut 1 1 1 1
24 DIN7603-A27×32 密封垫圈 Sealing washer 1 1 1 1
25 C82.08.05.0003 缩径管接 Reducing pipe union 1 1 1 1
26 C62.09.47.3000 出油管结合组 Fuel return piping ass. 1 1 1 1
27 DIN7603-A18×24 密封垫圈 Sealing washer 2 2 2 2
28 DIN7643-LL15 空心螺钉 Hollow screw 1 1 1 1
