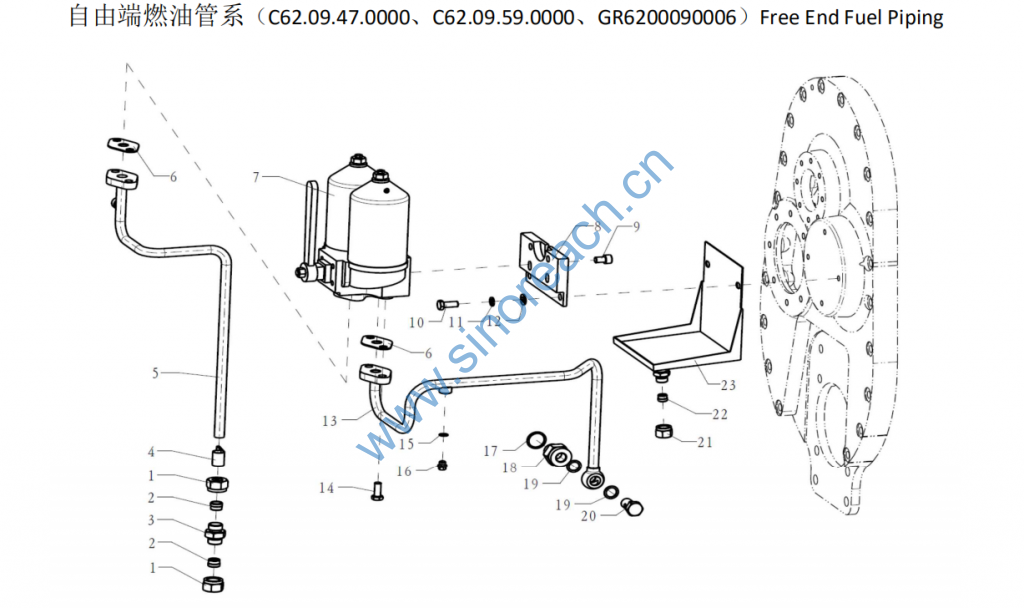

C62.09.47.0000、C62.09.59.0000、GR6200090006 Free End Fuel Piping

1 DIN3870-AL16 连接螺母 Connecting nut 2 2 2 2
2 DIN3861-L16 卡套 Sleeve valve 2 2 2 2
3 DIN3902-L16 直通接头体 Straight through
coupling body 1 1 1 1
4 C62.09.47.0001 管夹 Pipe clip 1 1 1 1
5 C62.09.47.1000 进油管结合组 Fuel charge pipe ass. 1 1 1 1
6 C62.09.04.0003 密封垫片 Sealing gaske 2 2 2 2
7 C62.25.04.1000 燃油双筒滤器 Two-barrel fuel filter 1 1 1 1
8 C62.09.21.2001 安装板 Mounting plate 1 1 1 1
9 90033040016 内六角头螺钉 Hex. socket cap screw 4 4 4 4 GB/T70.1-M10×16
10 90003802523 六角头螺栓 Hex. head bolt 3 3 3 3 GB/T5783-M10×25
11 90034180004 弹簧垫圈 Spring washer 3 3 3 3 GB/T859-10
12 90003930271 平垫圈 Flat washer 3 3 3 3 GB/T97.1-10
13
C62.09.47.3000 出油管结合组 Fuel return piping ass. 1 1 1 1
C62.09.59.1000 出油管结合组 Fuel return piping ass. 1 1 1 1
620009470023 出油管结合组 Fuel return piping ass. 1 1 1 1

14 90031170032 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M10×25
15 DIN7603-A10×14 密封垫圈 Sealing washer 1 1 1 1
16 LS-AM10×1 六角螺塞 Hex. screw plug 1 1 1 1
17 DIN7603-A27×32 密封垫圈 Sealing washer 1 1 1 1
18 C82.08.05.0003 缩径管接 Shrunken connector 1 1 1 1
19 612600080275 密封垫圈 Sealing washer 2 2 2 2
20 DIN7643-LL15 空心螺钉 Hollow screw 1 1 1 1
21 DIN3870-AL12 连接螺母 Connecting nut 1 1 1 1
22 DIN3861-L12 卡套 Sleeve chuck 1 1 1 1
23 C62.09.47.2000 接油盘组件 Oil collecting pan ass. 1 1 1 1
