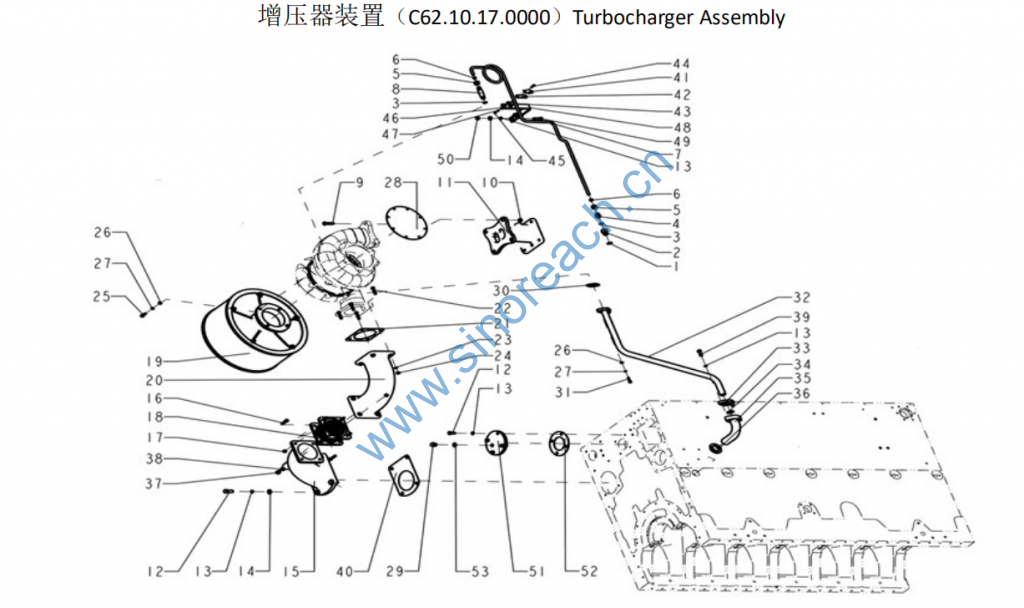

C62.10.17.0000 Turbocharger Assembly

1 DIN7603-A21×26 密封垫圈 Sealing washer 1 1 1
2 C62.10.01.1001 螺纹接头体 The nipple body 1 1 1
3 DIN7603-A17×21 密封垫圈 Sealing washer 2 2 2
4 DIN3901-L12R 端式接头体 End type connector 1 1 1
5 DIN3870-AL12 连接螺母 Connecting nut 2 2 2
6 DIN3861-L12 卡套 Sleeve chuck 2 2 2
7 C62.10.17.3001 进油管 Oil charge pipe 1 1 1
8 C62.10.17.3002 连接管 Connecting tube 1 1 1
9 620010010002 排气管螺栓 Exhaust pipe blot 10 10 10
10 620010010007 六角螺母 Hexagonal nut 10 10 10
11 C62.10.17.0001 连接管 Connecting tube 1 1 1
12 90011270019 六角头螺栓 Hex. head bolt 8 8 8 GB/T5783-M12×30
13 90014010002 弹簧垫圈 Washer 12 12 12 GB/T93-12
14 90003930282 平垫圈 Flat washer 6 6 6 GB/T97.1-12
15 C62.10.17.0003 下进气管 Lower air charge pipe 1 1 1

16 90031170035 六角头螺栓 Hexagonal head bolt 8 8 8 GB/T5782-M10×40
17 90003871305 六角螺母 Hexagonal nut 8 8 8 GB/T6170-M10
18 C62.10.16.2000 进气波纹管 Air charge corrugated pipe 1 1 1
19 C62.10.17.2000 空气滤清器 Air filter 1 1 1
20 C62.10.17.0002 进气管 Air charge pipe 1 1 1
21 C62.10.17.0005 垫片 Gasket 1 1 1
22 90003802442 六角头螺栓 Hex. head bolt 4 4 4 GB/T5782-M8×40
23 90014010013 标准型垫圈 Criterion spring washer 4 4 4 GB/T93-8
24 90012210022 六角螺母 Hex. nut 4 4 4 GB/T6170-M8
25 90031170034 六角头螺栓 Hex. head bolt 4 4 4 GB/T5783-M10×35
26 90003930271 平垫圈 Flat washer 6 6 6 GB/T97.1-10
27 90014010001 弹簧垫圈 Criterion spring washer 12 12 12 GB/T93-10
28 C62.10.17.0007 扪板 Blanking plate 1 1 1
29 LS-AM20×1.5 六角螺塞 Hex. screw plug 1 1 1
30 C62.10.17.0006 扁垫片 Flat gasket 1 1 1
31 90003862532 内六角螺钉 Hex. socket cap screw 2 2 2

32 C62.10.17.4100 增压器回油
管结合子组
Oil return pipe
subassembly 1 1 1
33 C62.10.01.2005 法兰 Flange 1 1 1
34 90037610008 O 型圈 O-ring 1 1 1 GB/T3452.1-30×3.5
36 C62.10.01.0008 圆螺母 circularity nut 1 1 1
37 LS-AM16×1.5 六角螺塞 Hex. screw plug 1 1 1
38 DIN7603-A17×21 密封垫圈 Sealing washer 1 1 1
39 90031170045 六角头螺栓 Hex. head bolt 2 2 2 GB/T5783-M12×35
40 C62.10.17.0004 垫片 Gasket 1 1 1
41 C62.10.01.0002 管夹 Pipe clip 1 1 1
42 C62.10.01.0003 橡胶垫一 Rubber matting 1 1 1 1
43 C62.10.01.0004 橡胶垫二 Rubber matting 2 1 1 1
44 90011350060 六角头螺栓 Hex. head bolt 2 2 2 GB/T5783-M6×25
45 90012210020 六角螺母 Hex. nut 2 2 2 GB/T6170-M6
46 90034050003 平垫圈 Flat washer 2 2 2 GB/T97.1-6
47 90014350003 标准型弹簧 Criterion spring washer 2 2 2 GB/T93-6
48 C62.10.01.0001 油管支架 Oil pipe support 1 1 1

49 90031170050 六角头螺
栓
Hex. head bolt 2 2 2 GB/T5783-M12×45
50 90012210004 六角螺母 Hex. nut 2 2 2 GB/T6170-M12
51 C62.13.03.0005 法兰 Flange 1 1 1
52 C62.13.03.0004 垫片 Gasket 1 1 1
53 DIN7603-A21×26 密封垫圈 Sealing washer 1 1 1
