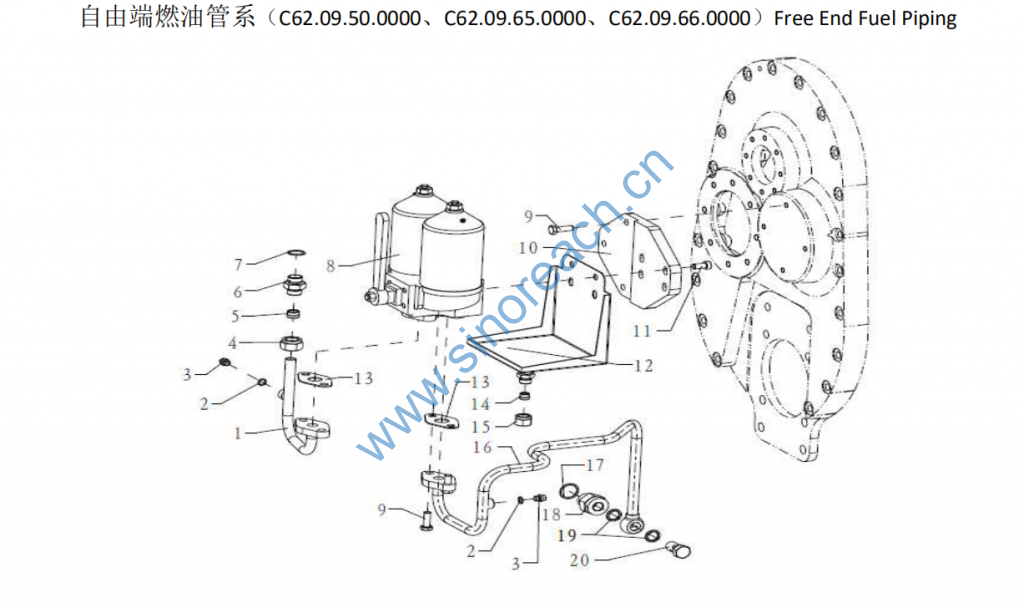

C62.09.50.0000、C62.09.65.0000、C62.09.66.0000 Free End Fuel Piping

1
C62.09.50.2100 进油管结合子
组
Fuel charge pipe
subassembly 1 1 1 1
C62.09.65.2100 进油管结合子
组
Fuel charge pipe
subassembly 1 1 1 1
C62.09.50.2100 进油管结合子
组
Fuel charge pipe
subassembly 1 1 1 1
2 DIN7603-A10×14 密封垫圈 Sealing washer 2 2 2 2
3 LS-AM10×1 六角螺塞 Hex. screw plug 2 2 2 2
4 DIN3870-AL16 连接螺母 Connecting nut 1 1 1 1
5 DIN3861-L16 卡套 Sleeve valve 1 1 1 1
6 DIN3902-L16 直通接头体 Straight through
coupling body 1 1 1 1
7 DIN7603-A22×27 密封垫圈 Sealing washer 1 1 1 1
8 C12.25.02.2000 燃油双筒滤器 Two-barrel fuel
filter
1 1 1 1
9 90003802527 六角头螺栓 Hex. head bolt 7 7 7 7 GB/T5783-M10×30
10 C62.09.50.0001 燃油滤器支架 Fuel filter bracket 1 1 1 1

11 90003862524 内六角头螺钉 Hex. socket cap
screw
4 4 4 4 GB/T70.1-M10×20
12 C62.09.50.1000 接油盘结合组 Fuel gathering pan
assembly 1 1 1 1
13 C12.09.07.0002 密封垫片 Sealing gasket 2 2 2 2
14 DIN3861-L12 卡套 Sleeve valve 1 1 1 1
15 DIN3870-AL12 连接螺母 Connecting nut 1 1 1 1
16
C62.09.66.3100 出油管结合子
组
Fuel return piping
assembly 1 1 1 1
C62.09.65.3100 出油管结合子
组
Fuel return piping
assembly 1 1 1 1
C62.09.66.3100 出油管结合子
组
Fuel return piping
assembly 1 1 1 1
17 DIN7603-A27×32 密封垫圈 Sealing washer 1 1 1 1
18 C82.08.05.0003 缩径管接 Shrunken
connector
1 1 1 1
19 612600080275 密封垫圈 Sealing washer 2 2 2 2
20 DIN7643-LL15 空心螺钉 Hollow screw 1 1 1 1
