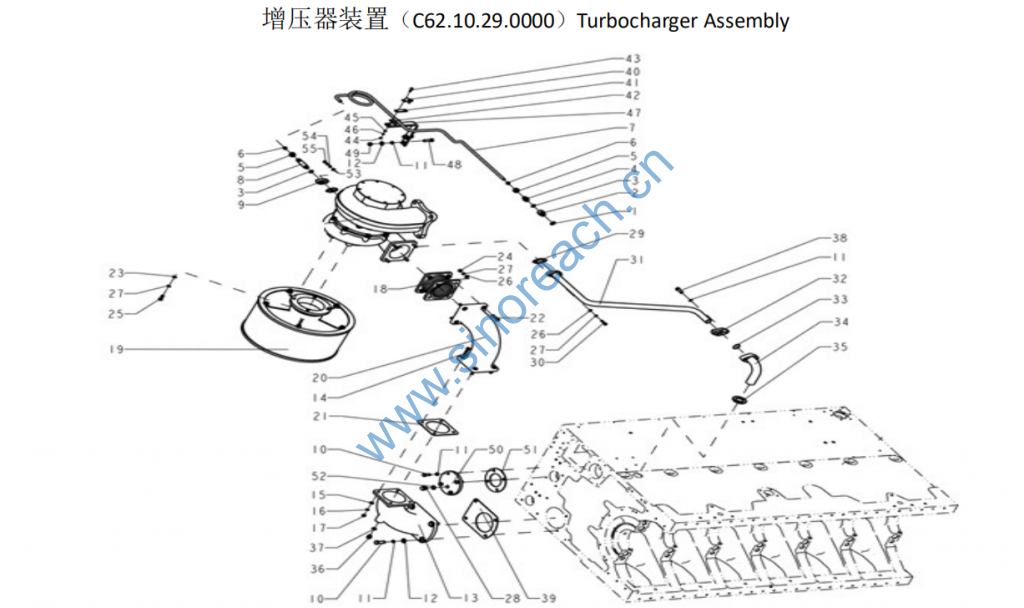

C62.10.29.0000 Turbocharger Assembly

1 DIN7603-A21×26 密封垫圈 Sealing washer 1 1 1
2 C62.10.01.1001 螺纹接头体 The nipple body 1 1 1
3 DIN7603-A17×21 密封垫圈 Sealing washer 2 2 2
4 DIN3901-L12R 端式接头体 End type connector body 1 1 1
5 DIN3870-AL12 连接螺母 Connecting nut 2 2 2
6 DIN3861-L12 卡套 Sleeve chuck 2 2 2
7 C62.10.01.1003 进油管 Oil charge pipe 1 1 1
8 C62.10.01.1002 连接管 Connecting tube 1 1 1
9 C62.10.01.1005 扁法兰 Flat flange 1 1 1
10 90031170057 六角头螺栓 Hex. head bolt 8 8 8 GB/T5783-M14×35
11 90014010002 标准型垫圈 Criterion spring washer 12 12 12 GB/T93-12
12 90003935015 平垫圈 Flat washer 6 6 6 GB/T97.1-14
13 C62.10.29.1002 下进气管 Lower air charge pipe 1 1 1
14 90003802542 六角头螺栓 Hex. head bolt 8 8 8 GB/T5782-M10×45
15 90003930271 平垫圈 Flat washer 4 4 4 GB/T97.1-10

16 90014010001 弹簧垫圈 Criterion spring washer 4 4 4 GB/T93-10
17 90003871305 六角螺母 Hex. nut 4 4 4 GB/T6170-M10
18 C62.10.16.2000 进气波纹管 Air charge corrugated pipe 1 1 1
19 C62.10.16.3000 空气滤清器 Air filter 1 1 1
20 C62.10.29.1001 上进气管 Upper air charge pipe 1 1 1
21 C62.10.10.1001 垫片 Gasket 1 1 1
22 90031170036 六角头螺栓 Hex. head bolt 4 4 4 GB/T5783-M10×45
23 90034080001 小垫圈 Small washer 4 4 4 GB/T848-10
24 90003871305 六角螺母 Hex. nut 4 4 4 GB/T6170-M10
25 90031170034 六角头螺栓 Hex. head bolt 4 4 4 GB/T5783-M10×35
26 90003930271 平垫圈 Flat washer 14 14 14 GB/T97.1-10
27 90014010001 弹簧垫圈 Criterion spring washer 14 14 14 GB/T93-10
28 LS-AM20×1.5 六角螺塞 Hex. screw plug 1 1 1
29 C62.10.17.0006 扁垫片 Flat gasket 1 1 1
30 90003862532 内六角螺钉 Hex. socket cap screw 2 2 2 GB/T70.1-M10×30
31 C62.10.01.2200 回油管结合组 Oil return pipe ass. 1 1 1

32 C62.10.01.2005 法兰 Flange 1 1 1
33 90037610008 O 型圈 O-ring 1 1 1 GB/T3452.1-30×3.5
34 C62.10.01.2100 回油管结合组 Oil return pipe ass. 1 1 1
35 C62.10.01.0008 圆螺母 circularity nut 1 1 1
36 LS-AM16×1.5 六角螺塞 Hex. screw plug 1 1 1
37 DIN7603-A17×21 密封垫圈 Sealing washer 1 1 1
38 90031170045 六角头螺栓 Hex. head bolt 2 2 2 GB/T5783-M12×35
39 C62.14.03.0010 垫片 Gasket 1 1 1
40 C62.10.01.0002 管夹 Pipe clip 1 1 1
41 C62.10.01.0003 橡胶垫 一 Rubber matting 1 1 1 1
42 C62.10.01.0004 橡胶垫 二 Rubber matting 2 1 1 1
43 90011350060 六角头螺栓 Hex. head bolt 2 2 2 GB/T5783-M6×25
44 90012210020 六角螺母 Hex. nut 2 2 2 GB/T6170-M6
45 90034050003 平垫圈 Flat washer 2 2 2 GB/T97.1-6
46 90014350003 标准型垫圈 Criterion spring asher 2 2 2 GB/T93-6
47 C62.10.01.0001 油管支架 Oil pipe support 1 1 1

48 90031170050 六角头螺栓 Hex. head bolt 2 2 2 GB/T5783-M12×45
49 90012210004 六角螺母 Hex. nut 2 2 2 GB/T6170-M12
50 C62.13.03.0005 法兰 Flange 1 1 1
51 C62.13.03.0004 垫片 Gasket 1 1 1
52 DIN7603-A21×26 密封垫圈 Sealing washer 1 1 1
53 90003930261 平垫圈 Flat washer 4 4 4 GB/T97.1-8
54 90014010013 弹簧垫圈 Spring washer 4 4 4 GB/T93-8
