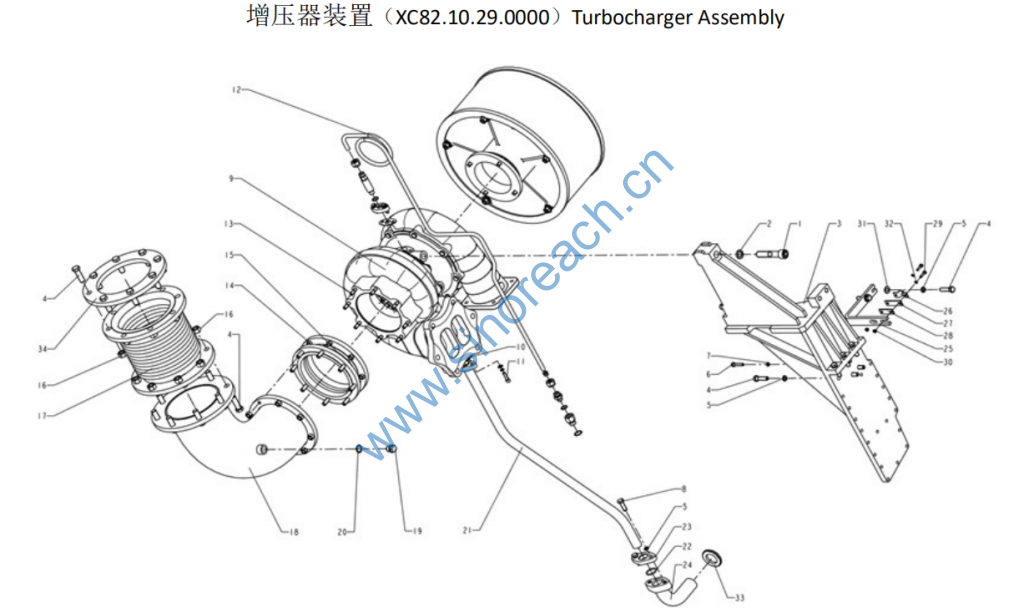

XC82.10.29.0000 Turbocharger Assembly

1 90033040050 内六角头螺钉 Hex. socket cap screw 2 2 2 2 GB/T70.1-M20×100
2 90034010009 弹簧垫圈 Spring washer 2 2 2 2 GB/T93-20
3 XC82.10.29.1000 支架结合组 Support ubassembly 1 1 1 1
4 90031170050 六角头螺栓 Hexagonal head blot 40 40 40 40 GB/T5783-M12×45
5 90014010002 弹簧垫圈 Spring washer 10 10 10 10 GB/T93-12
6 90011270079 六角头螺栓 Hex. head blot 19 19 19 19 GB/T5783-M8×40
7 90034180003 弹簧垫圈 Spring washer 19 19 19 19 GB/T859-8
8 90031170045 六角头螺栓 Hex. head blot 2 2 2 2 GB/T5783-M12×35
9 XC82.10.26.1000 涡轮增压器 turbocharger 1 1 1 1
10 XC82.10.26.0011 回油管垫片 Flat gasket 1 1 1 1
11 90033040020 内六角头螺钉 Hex. socket cap screw 2 2 2 2 GB/T70.1-M10×35
12 XC82.10.29.2000 进油管结合组 Oil charge pipe ass. 1 1 1 1
13 C12.10.01.0007 双头螺柱 Stud 12 12 12 12
14 C12.10.01.0008 六角螺母 Hex. nut 12 12 12 12
15 XC82.10.29.0003 涡轮端波纹管 Turbocharger side
bellows 1 1 1 1

16 90012210004 六角螺母 Hex. nut 32 32 32 32 GB/T6170-M12
17 XC82.10.26.0001 排气波纹管 Exhaust bellows 1 1 1 1
18 XC82.10.29.0004 排气弯管 Exhaust bend 1 1 1 1
19 LS-AM20×1.5 六角螺塞 Hex. head blot 2 2 2 2
20 DIN7603-A21×26 密封垫圈 Sealing washer 2 2 2 2
21 XC82.10.29.3000 回油管结合组 Oil return pipe ass. 1 1 1 1
22 90037610009 O 型密封圈 O-ring 1 1 1 1 GB/T3452.1-37.5×3.55G
23 XC82.10.26.0013 扁法兰 Flat flange 1 1 1 1
24 XC82.10.26.6000 回油管结合组 Oil return pipe
ubassembly
1 1 1 1
25 XC82.10.29.0006 油管支架 Oil pipe support 1 1 1 1
26 XC82.10.29.0007 管夹 Pipe clip 1 1 1 1
27 XC82.10.29.0008 橡胶垫 一 Rubber matting 1 1 1 1 1
28 XC82.10.29.0009 橡胶垫 二 Rubber matting 2 1 1 1 1
29 90031170016 六角头螺栓 Hex. head blot 2 2 2 2 GB/T5783-M6×20
30 90032150003 六角螺母 Hex. nut 2 2 2 2 GB/T6170-M6
31 900340500007 平垫圈 Flat washer 2 2 2 2 GB/T97.1-6

32 90014350003 弹簧垫圈 Spring washer 2 2 2 2 GB/T93-6
33 C62.10.01.0008 圆螺母 Ring nut 1 1 1 1
34 XC82.10.29.0010 法兰 Flange 1 1 1 1
