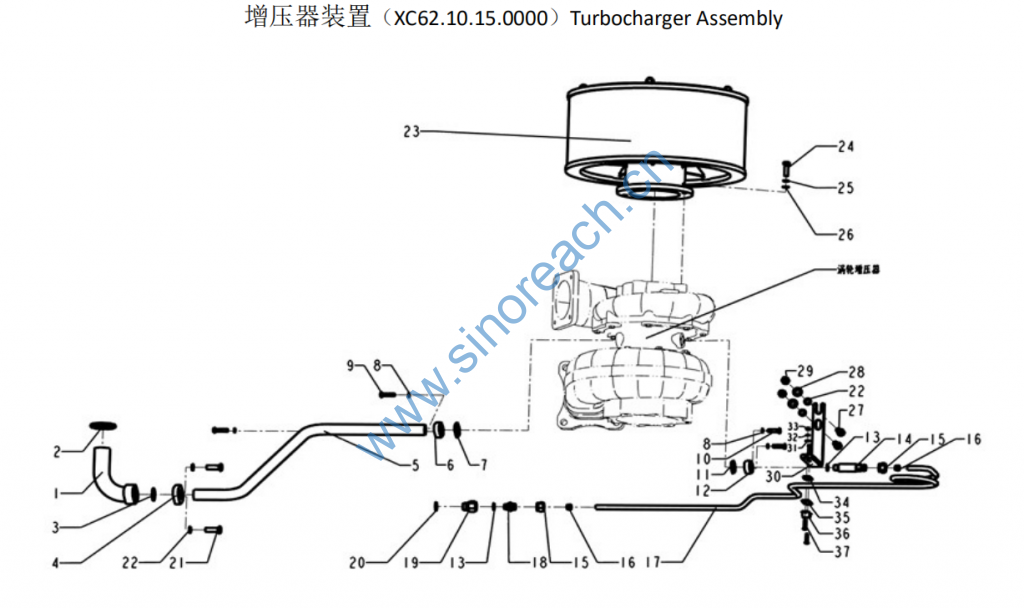

XC62.10.15.0000 Turbocharger Assembly

1 C62.10.01.2101 回油管结合组 Oil return pipes
ubassembly
1
2 C62.10.01.0008 圆螺母 Ring nut 1
3 90037610008 O 型密封圈 O-ring 1 GB/T3452.1-30×3.55-G
4 C62.10.01.2005 法兰 Flange 1
5 C62.10.01.2004 回油管 Oil return pipe 1
6 C62.10.01.2003 扁法兰 Flat flange 1
7 C62.10.01.2002 扁垫片 Flat gasket 1
8 90014010013 弹簧垫圈 Spring washer 4 GB/T93-8
9 90033040013 内六角头螺钉 Hex. socket cap screw 2 GB/T70.1-M8×30
10 90011270077 六角头螺栓 Hex. head blot 2 GB/T5783-M8×30
11 C62.10.01.1005 扁垫片 Flat gasket 1
12 C62.10.01.1004 扁法兰 Flat flange 1
13 DIN7603-A17×21 密封垫圈 Sealing washer 2
14 C62.10.01.1002 连接管 Connecting tube 1
15 DIN3870-AL12 连接螺母 Connecting nut 2

16 DIN3861-L12 卡套 Sleeve chuck 2
17 C62.10.01.1003 进油管 Oil charge pipe 1
18 DIN3901-L12R 端式接头体 End type connector
body
1
19 C62.10.01.1001 螺纹接头体 The nipple body 1
20 DIN7603-A21×26 密封垫圈 Sealing washer 1
21 90031170045 六角头螺栓 Hex. head blot 2 GB/T5783-M12×35
22 90034010006 标准型垫圈 Standard spring
washer
4
23 C62.10.16.3000 空气滤清器 Air filter 1
24 90031170034 六角头螺栓 Hex. head blot 4
25 90034010005 标准型垫圈 Standard spring
washer
4
26 90034080001 小垫圈 Small washer 4
27 90031170050 六角头螺栓 Hex. head blot 2 GB/T5783-M12×45
28 90003930282 平垫圈 Flate washer 2 GB/T97.1-12
