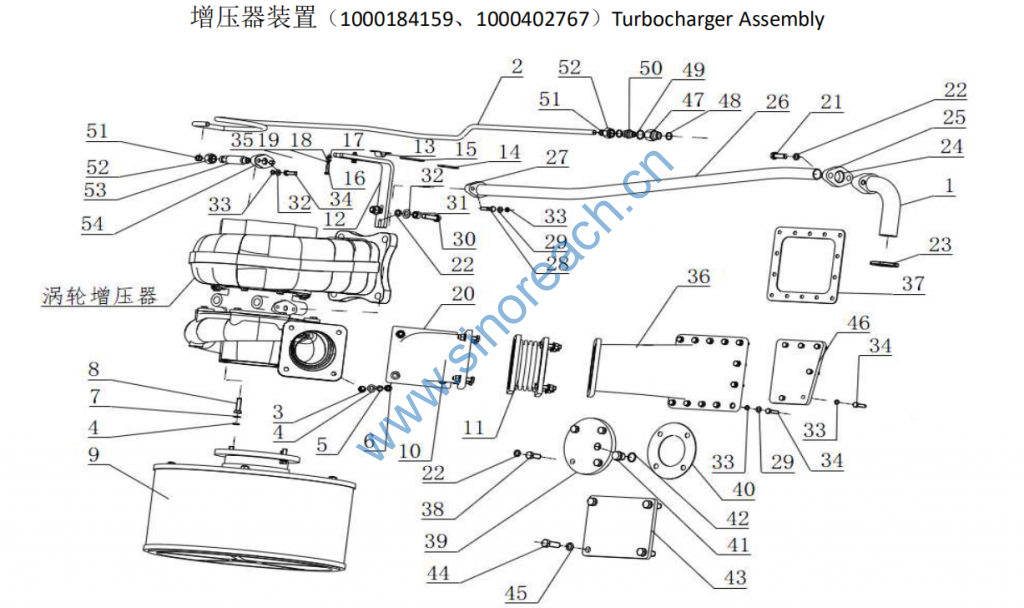

1000184159、1000402767 Turbocharger Assembly

1 C62.10.01.2100 回油管结合
组
Oil return pipes
ubassembly
1 1
2 C62.10.01.1003 进油管 Oil charge pipe 1 1
3 9003930271 平垫圈 washer 12 12 GB/T97.1-10
4 90014010001 弹簧垫圈 Spring washer 16 16 GB/T93-10
5 90003871305 六角螺母 Hex. nut 12 12 GB/T6170-10
6 90031170036 六角头螺栓 Hex. head blot 12 12 GB/T5783-M10×45
7 90034080001 小垫圈 Small washer 4 4
8 90003802562 六角头螺栓 Hex. head blot 4 4 GB/T5783-M10×35
9 C62.10.16.3000 空气滤清器 Air filter 1 1
10 620010160039 进气管 Air charge pipe 1 1
11 620010160040 进气波纹管 Corrugated pipe 1 1
12 C62.10.01.0001 油管支架 Oil pipe support 1 1
13 C62.10.01.0002 管夹 Pipe clip 1 1
14 C62.10.01.0003 橡胶垫一 Rubber matting 1 1 1
15 C62.10.01.0004 橡胶垫二 Rubber matting 2 1 1

16 90011350060 六角头螺栓 Hex. head blot 2 2 GB/T5783-M6×25
17 90012210020 六角螺母 Hex. nut 2 2 GB/T6170-M6
18 90034050003 平垫圈 Flat washer 2 2 GB/T97.1-6
19 90014350003 弹簧垫圈 Spring washer 2 2 GB/T93-6
20 620010160041 垫片 Gasket 1 1
21 90031170045 六角头螺栓 Hex. Head bolt 2 2 GB/T5783-M12×35
22 90014010002 弹簧垫圈 Spring washer 8 8 GB/T93-12
23 C62.10.01.0008 圆螺母 Ring nut 1 1
24 90037610008 O 型圈 O-ring 1 1
25 C62.10.01.2005 法兰 Flange 1 1
26 620010160049 回油管结合
组
Oil return pipe 1 1
27 C62.10.01.2002 扁垫片 Flat gasket 1 1
28 90033040013 内六角螺钉 Hex. cap screw 2 2 GB/T70.1-M8×30
29
90003930261 平垫圈 Flat washer 18 GB/T97.1-8
90003930282 平垫圈 Flat washer 11 GB/T97.1-12

30 90031170050 六级头螺栓 Hex. Head blot 2 2 GB/T5783-M12×45
31 90012210004 六角螺母 Hex. nut 2 2 GB/T6170-M12
32 90003930282 平垫圈 Flate washer 2 2 GB/T97.1-12
33
90014010013 弹簧垫圈 Spring washer 24 GB/T93-8
90014010002 弹簧垫圈 Spring washer 13 GB/T93-12
34
90011270077 六角头螺栓 Hex. Head blot 22 GB/T5783-M8×30
90011270019 六角头螺栓 Hex. Head blot 13 GB/T5783-M12×30
35 C62.10.01.1005 扁垫片 Flat gasket 1 1
36
1000175826 进气弯管 Air inlet pipe 1
1000393078 进气弯管 Air inlet pipe 1
37
1000184161 垫片 Gasket 1
1000405240 垫片 Gasket 1
38 90011270019 六角头螺栓 Hex. Head blot 4 4 GB/T5783-M12×30
39 C62.13.03.0005 法兰 Flange 1 1
40 C62.13.03.0004 垫片 Gasket 1 1

41 LS-AM20×1.5 六角螺塞 Hex. screw 1 1
42 DIN7603-A21×26 密封垫圈 Sealing washer 1 1
43
C62.02.25.0003 盖板 Cover plate 1
1000396202 盖板 Cover plate 1
44
90031170057 六角头螺栓 Hex. Head blot 4 GB/T5783-M14×35
90011270019 六角头螺栓 Hex. Head blot 6 GB/T5783-M12×30
45
90014010003 弹簧垫圈 Spring washer 4 GB/T93-14
90014010002 弹簧垫圈 Spring washer 6 GB/T93-12
46
1000287717 板 Plate 1
1000396198 板 Plate 1
47 C62.10.01.1001 螺纹接头 Screw joint 1 1
48 DIN7603-A21×26 密封垫圈 Sealing washer 1 1
48 DIN7603-A17×21 密封垫圈 Sealing washer 2 2
50 DIN3901-L12R 端式接头体 End-type joint 1 1
51 90003559563 卡套 Sleeve chuck 2 2

52 DIN3870-AL12 连接螺母 Connecting nut 2 2
53 C62.10.01.1002 连接管 Connecting pipe 1 1
54 C62.10.01.1004 扁法兰 Flat flange 1 1
