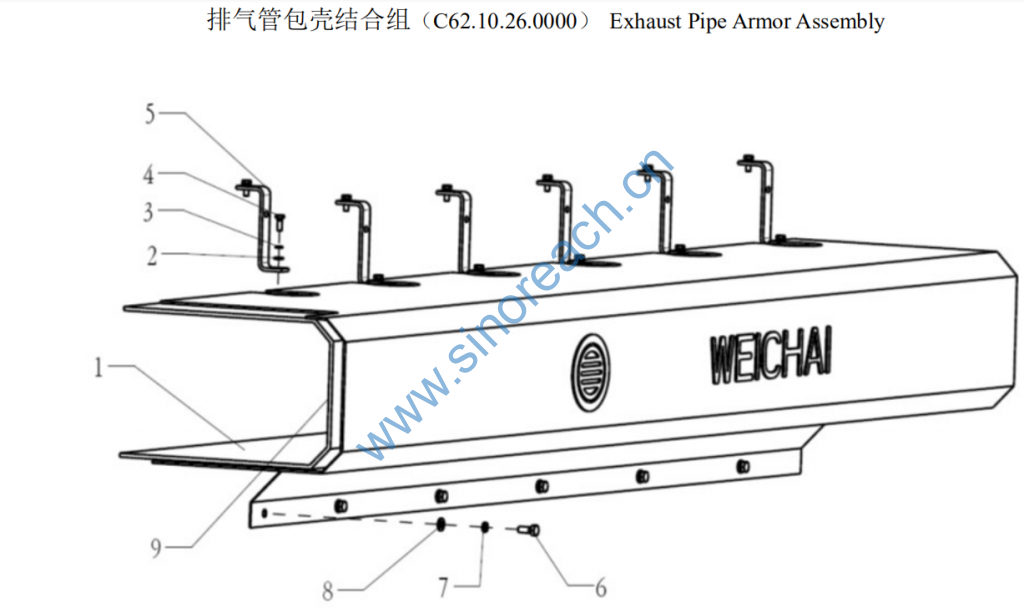

C62.10.26.0000 Exhaust Pipe Armor Assembly

1 C62.10.11.1001 外包壳 Outside armor 1 1
2 90034020003 平垫圈 Flat washer 12 12 GB/T97.1-6
3 90034010003 弹簧垫圈 Spring washer 12 12 GB/T93-6
4 90031170013 六角头螺栓 Hex. head bolt 12 12 GB/T5783-M6×16
5 C62.10.03.1001 支架 Support 6 6
6 90031170021 六角头螺栓 Hex. head bolt 6 6 GB/T5783-M8×20
7 90034010004 弹簧垫圈 Spring washer 6 6 GB/T93-8
8 90034020004 平垫圈 Flat washer 6 6 GB/T97.1-8
9 XC62.10.03.1000 防热层 Thermal insulation 1 1
