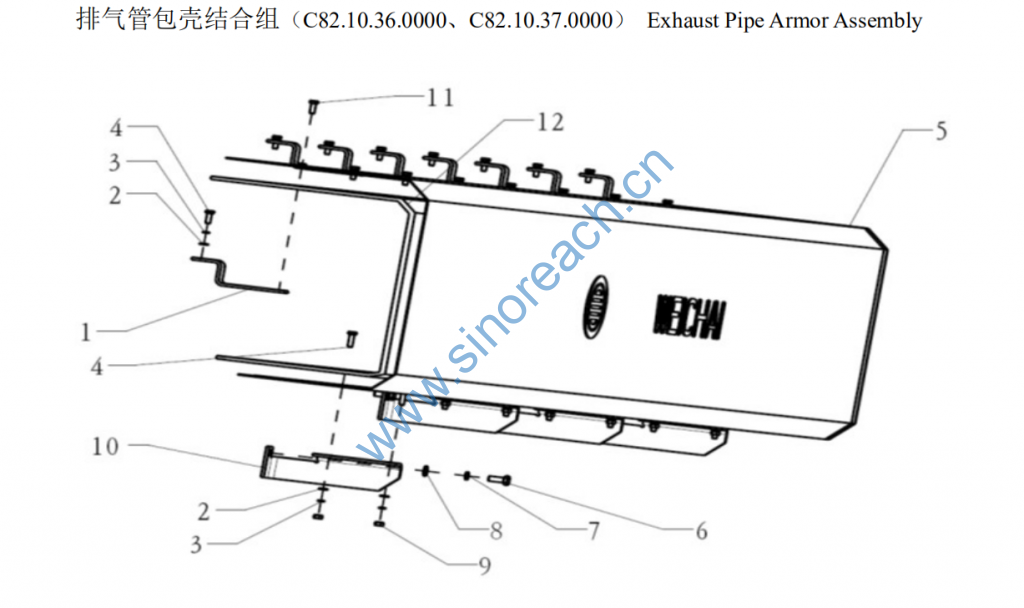

C82.10.36.0000、C82.10.37.0000 Exhaust Pipe Armor Assembly

1 C82.10.36.0001 支架 Support 8 8
2 90034020003 平垫圈 Flat washer 32 32 GB/T97.1-6
3 90034010003 弹簧垫圈 Spring washer 32 32 GB/T93-6
4 90031170015 六角头螺栓 Hex. head bolt 24 24 GB/T5783-M6×20
5 C82.10.36.1000 外包壳 Outside armor 1 1
6 90031170021 六角头螺栓 Hex. head bolt 4 4 GB/T5783-M8×20
7 90034010004 弹簧垫圈 Spring washer 4 4 GB/T93-8
8 90034020004 平垫圈 Flat washer 4 4 GB/T97.1-8
9 90032150003 六角螺母 Hex. nut 8 8 GB/T6170-M6
10 C82.10.36.0002 支架 Support 4 4
11 90031170013 六角头螺栓 Hex. head bolt 8 8 GB/T5783-M6×16
12 C82.10.36.2000 隔热层结合组 Thermal insulation
assembly 1 1
