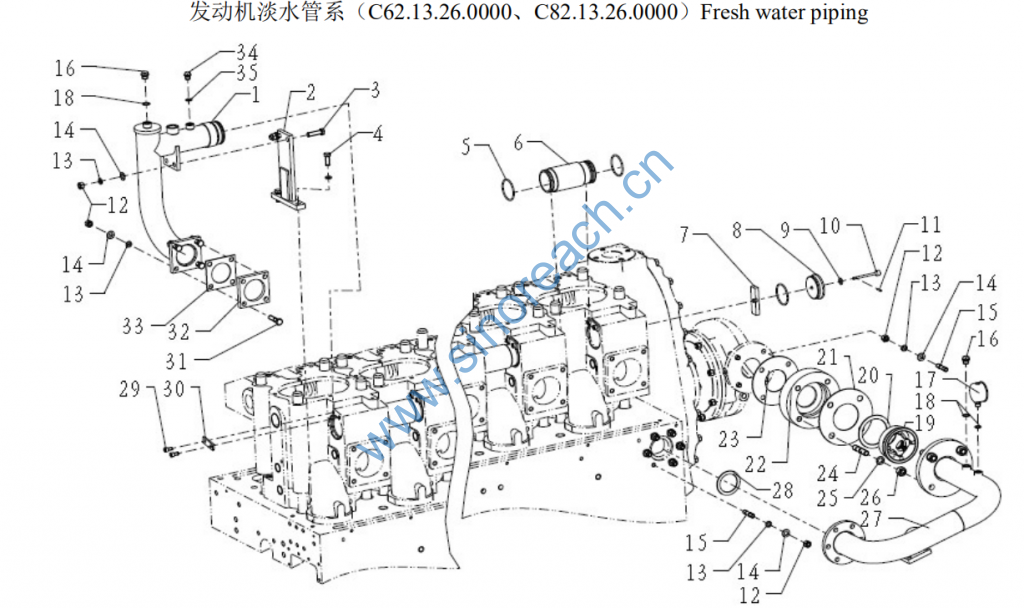

C62.13.26.0000、C82.13.26.0000 Fresh water piping

1 C82.13.03.1000 淡水出水管 Fresh water 1 1 1 1
2 C62.13.03.3000 支架结合组 Bracket ass. 1 1 1 1
3 90031170050 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M12×45
4 90011270019 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M12×30
5 90037610018 O 型密封圈 O-ring 12 12 16 16 GB/T3452.1-G-63.0×3.55
6
C62.13.03.0006 冷却水连接管 Cooling water pipe 5 5 7 7 20-76×8-GB/T8162
1000526173 冷却水连接管 Cooling water pipe 5 5 7 7 不锈钢 12Cr18Ni9
7 C62.13.03.0014 压板 Pressed plate 1 1 1 1
8 620013010003 封板 Closing board 1 1 1 1
9 620013030003 垫片 Gasket 1 1 1 1
10 620013030002 带肩螺钉 Shoulder screw 1 1 1 1
11 90035010008 开口销 Split pin 1 1 1 1 GB/T91-3.5×25
12 90012210004 六角螺母 Hex. nut 20 20 20 20 GB/T6170-M12
13 90014010002 弹簧垫圈 Spring washer 20 20 20 20 GB/T93-12
14 90003930282 平垫圈 Flat washer 20 20 20 20 GB/T97.1-12
15 90003813638 双头螺柱 Stud bolt 10 10 10 10 GB/T898-M12×35
16 LS-AM16×1.5 六角螺塞 Hex. screw plug 1 1 1 1

17 WSS-311Y 温度计 Thermometer 1 1 1 1 0-100℃
18 DIN7603-A17×21 密封垫圈 Sealing washer 3 3 3 3
19 C82.13.09.2000 止回阀 Check valve 1 1 1 1
20 C82.13.09.0003 垫片 Washer 1 1 1 1
21 C82.13.09.0001 垫片 Washer 1 1 1 1
22 C82.13.09.0002 过渡法兰 Buffer flange 1 1 1 1
23 C62.13.03.0002 垫片 Washer 1 1 1 1
24 90031520024 双头螺柱 Stud bolt 4 4 4 4 GB/T898-M16×50
25 90034180007 弹簧垫圈 Spring washer 4 4 4 4 GB/T859-16
26 90012210009 六角螺母 Hex. nut 4 4 4 4 GB/T6170-M16
27 C62.13.26.1000 淡水进水管 Fresh water pipe 1 1 1 1
28 C62.13.03.0002 垫片 Washer 1 1 1 1
29 90003862419 内六角头螺钉 Hex. socket 12 12 16 16 GB/T70.1-M8×16
30 C62.13.03.0007 支架 Support 6 6 8 8
31 90011270027 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M12×50
32 C62.13.03.2006 方法兰 Square flange 1 1 1 1
33 C62.13.03.0017 方垫片 Square washer 1 1 1 1
34 LS-AM14×1.5 六角螺塞 Hex. screw plug 1 1 1 1
35 DIN7603-A14×18 密封垫圈 Sealing washer 1 1 1 1
