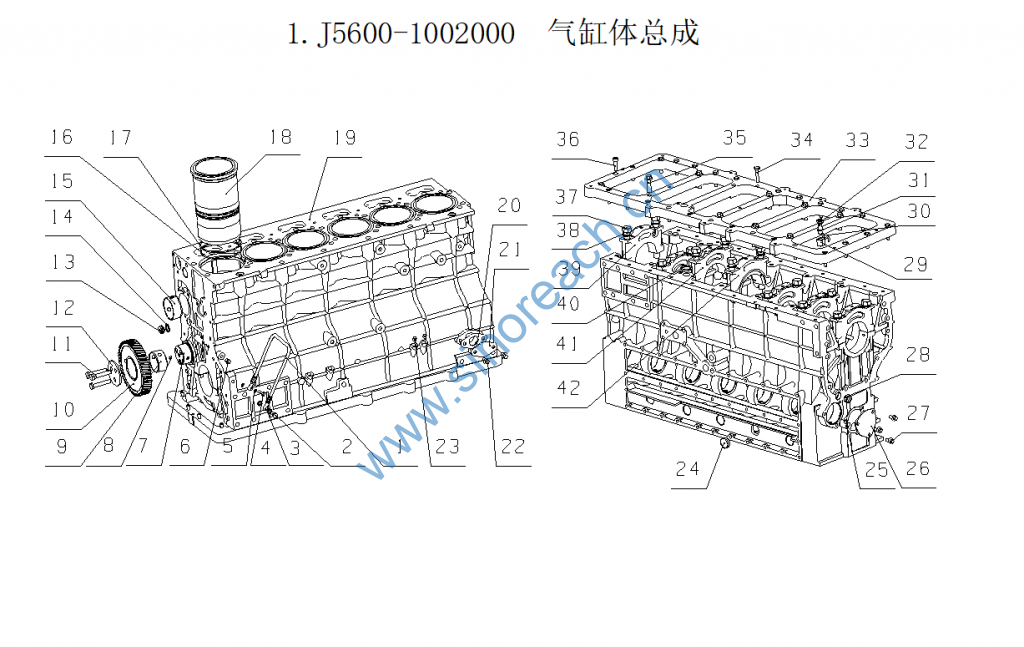

J5600-1002000 气缸体总成 Cylinder Block Assembly

1 J5600-1002370D 惰齿轮润滑油管 Idler gear lubrication pipe 1
2 Q/YC901-1C0810 铰接螺栓M8×1 Articulated bolt M8× 1 1
3 Q/YC149-8 复合式密封垫圈8 Seal washer8 2
4 150-1112012 螺栓 Bolt 1
5 150-1112011 垫圈 Washer 2
6 Q618B01 螺塞NPT1/8 Screw plug NPT 1/8 1
7 J5600-1002052 惰齿轮轴 Idler gear shaft 1
8 Q61508 螺塞M8×1 Screw plugM8× 1 1
9 6105QA-1002011 凸轮轴衬套 Camshaft bushing 1
10 A3000-1002051 正时惰齿轮 Timing idle gear 1
11 Q150B1055TF2 螺栓M10×55 Bolt M10× 55 3
12 A3100-1002054A 正时惰齿轮挡板 Timing idle gear plate 1
13 6105Q-1002067 主油道密封塞 Main oil gallery seal plug 1
14 YC208-B01800F O形圈2.65×18 O-ring 2.65× 18 1
15 L3000-1002011 凸轮轴衬套 Camshaft bushing 7
16 A3000-1002063B 气缸套封水圈 Cylinder liner O ring 6
17 A3000-1002063 气缸套封水圈 Cylinder liner O ring 6
18 J5600-1002106 气缸套 Cylinder liner 6
19 J5600-1002114A 气缸体 Cylinder block 1
20 6105Q-1014001 呼吸器垫片 Breather spacer 1
21 A7100-1319K-0 盖板 Cover plate 1
22 Q1840816 螺栓M8×16 Bolt M8× 16 2
23 6105Q-1002022 铝堵φ10×10 Aluminum plug Φ10×10 2
24 Q72230 塞片30 Spacer 30 6
25 A3100-1002103 凸轮轴端盖垫片 Camshaft end cover gasket 1
26 A3100-1002102 凸轮轴端盖 Camshaft end cover 1
27 Q1840816 螺栓M8×16 Bolt M8× 16 2
28 6105Q-1002069 后主油道堵塞 Rear main oil galley plug 1
29 J5600-1002740 喷嘴焊接件 Nozzle weldment 6
30 Q5220510 销5×10 Pin 5×10 6
31 430-1002163 垫圈 Washer 6
32 A3100-1002180 过油螺栓组件 Bolt with oil hole (assembly) 6
33 J5600-1002161 机体加强板 Block reinforced plate 1
34 Q150B0840TF2 螺栓M8×40 Bolt M8× 40 15
35 Q1841040TF2 螺栓M10×40 Bolt M10×40 8
36 Q218B0830TF2 螺钉M8×30 Screw M8× 30 13
37 A30-1002021 主轴承螺栓 Main bearing bolt 14
38 A30-1002019 主轴承螺栓垫圈 Main bearing bolt washer 14
39 A30-1002012 前主轴承盖 Front main bearing cap 1
40 YC208-C02580F O形圈3.55×25.8 O-ring 3.55× 25.8 1
41 A30-1002014 主轴承盖 Main bearing cap 5
42 A30-1002013 中间主轴承盖 Medium main bearing cap 1
